Solar PV inverters need to do more than ever before. Solar PV inverters must interact with the grid (UL 1741), offer more options to meet rapid shutdown (UL 3741), and ease the inclusion of battery storage. The 2025 Solar PV Inverter Buyer’s Guide showcases all of that and more — from microinverters to large-scale string inverters. We asked every inverter manufacturer what’s new in the lineup this year, and what their domestic manufacturing plans are. Those answers are below, followed by a full product lineup for each company, complete with spec sheets.

Microinverter market

At Intersolar North America 2025, Hoymiles unveiled the new MiS Series of microinverter — its lightest, most efficient microinverter yet. Hoymiles’ fourth-generation MiS microinverter will be available later this year and is rated at 97.5% efficiency. Customers can choose from a range of options (from 350 to 1,000 VA peak output power) and expect to boost their energy returns significantly.

APsystems has recently extended its standard warranty to 25 years for its DS3 and QT2 microinverters, emphasizing confidence in product durability and long-term performance. This update aligns with industry trends toward extended warranties, providing added assurance for installers and system owners. In addition, APsystems has been ranked No. 2 globally for inverter bankability by Sinovoltaics for two consecutive quarters. Domestic manufacturing plans: APsystems is in the process of establishing U.S. manufacturing, with plans to begin producing domestic content in late Q3.

Enphase began manufacturing select IQ8 Series Microinverters in the United States in 2024, with facilities in South Carolina and Texas capable of producing 20 million microinverters annually. The company currently manufactures the following residential IQ8 Microinverters products domestically with specific SKUs: IQ8X, IQ8HC, IQ8MC, IQ8AC, and IQ8+. The commercial microinverter, IQ8P-3P, is also produced in the U.S. with specific SKUs. In September, Enphase began producing IQ8X, IQ8HC, and IQ8P-3P Microinverters containing more U.S.-made components, including PCBA, electrical parts, and enclosure.

Hybrids for home

Fronius USA has been steadily expanding its product portfolio to address the evolving demands of the solar industry and the increasing need for energy storage solutions among homeowners nationwide. With the recent establishment of a dedicated research and development team in the United States, the company is further strengthening its focus on U.S. solar technologies. This strategic investment enables Fronius to develop advanced solutions that meet today’s evolving energy challenges while supporting their long-term vision of 24 Hours of Sun.  Domestic manufacturing plans: While the majority of its solar solutions are engineered and manufactured in Austria and parts of Europe, Fronius USA products are compliant in accordance with the BAA (Buy American Act).

The Tigo EI Inverter is the centerpiece of the Tigo Energy Intelligence (EI) Residential Solution. The EI Inverter orchestrates energy production and consumption (when coupled with the Tigo EI Battery). In addition, it enables module-level monitoring, optimization, and rapid shutdown when paired with Tigo TS4 MLPE (Module Level Power Electronics) through the EI platform.

Schneider Home is an all-in-one home energy management solution. It is the first integrated solution combining energy production, smart home automation, monitoring and control, all managed with one app. The system is modular and expandable, allowing homeowners to purchase according to their needs. In addition to the hybrid inverter, this offering includes a smart electrical panel and home battery.

C&I & Large-scale (with some home hybrids)

With more than 10 GWs of 3-phase string inverters installed across 20,000+ sites nationwide, CPS America continues to solidify its position as the No. 1 market shareholder for 3-phase string inverters in the United States. CPS’s new product launches include the cutting-edge 250 kW-600V inverter, the high power 350 kW-800V inverter for utility-scale applications, single-phase hybrid inverters and batteries, as well as the new Gonzo 62.5/125 kW-261 kWh C&I Energy Storage System. CPS is also expanding operations into the Canada and Latin America markets.

Solis is the world’s third largest string inverter manufacturer and rated BNEF Tier 1 supplier to homes, commercial businesses and utility-scale projects. In 2025, Solis is adding a new, 200A pass-thru integrated 48V split-phase energy storage inverter as well as a 30-60 kW commercial hybrid energy storage inverter. Domestic manufacturing plans:  No, Solis products will continued to be manufactured in the fully automated plant in China and Vietnam so not to impact product quality and reliability.

Sol-Ark has launched a 3-Stage Battery Partner Program to ensure seamless UL 9540 closed-loop communication for enhanced system efficiency and safety. Domestic manufacturing: Sol-Ark assembles inverters at its Allen, Texas, facility, reinforcing its commitment to domestic manufacturing. Technical support is provided 7 days/week in English, French, and Spanish.

SMA is known for its quality solar inverters, and over the past two years it has expanded that expertise into offering a complete renewable solution including energy storage, management and connected, innovative technology. Since its founding, SMA has always prioritized the customer, a commitment that is now more evident than ever with the launch of these seamless, integrated and comprehensive renewable energy solutions. Domestic manufacturing plans: The U.S. remains a key growth market for SMA, and the organization continues to assess the feasibility of establishing a contract manufacturing facility for residential and commercial solutions, while also exploring strategic U.S.-based manufacturing partnerships to support large-scale energy systems in the utility sector.

To aid solar companies that want to pursue the IRS domestic content bonus credit, SolarEdge Technologies and Enstall (the parent company of racking suppliers PanelClaw, IronRidge, EcoFasten) have aligned announced a partnership with CPA firm Novogradac & Company LLP and Crux to simplify the compliance process and provide a direct pathway to monetizing tax credits. The companies say they are combining due diligence, compliance validation, and tax credit monetization into a unified process.

Siemens supports utility-scale solar, community solar and energy storage in the United States with Central and Virtual Central (string inverter based) solutions.  Siemens has deployed more than 5 GW of inverters in the United States in the past three years and has a network of Field Service resources nationwide. In addition, Siemens operates a Green Technologies customer experience center in San Antonio, Texas where clients can receive factory certified hands-on training on both Central and String inverter solutions. Domestic manufacturing plans: Siemens commenced manufacturing Utility String inverters with ratings from 125-155 kW at 600Vac in the U.S. in 2024 under the KACO brand which is a fully owned Siemens subsidiary


Solar inverters from A to Z


APSystems

apsystems QT2

The QT2 is a 3-Phase microinverter for C&I applications. Each QT2 connects to up to 4 PV modules, is rapid shutdown and UL 1741 SB (CA Rule 21) compliant and comes in 1728W (208V) and 1800W (480V) output models. Why microinverters in commercial solar? As featured in the recent Solar Builder article “Making the case for microinverters in C&I solar,” the QT2 offers built-in rapid shutdown, pairing with higher capacity PV modules, improved performance over string inverters under a variety of conditions, fewer potential points of failure, plug-and-play three-phase wiring, and bonus: microinverters are now more cost-effective than ever!



  • 208V and 480V models, wye and delta 3-Phase.
  • True 3-Phase in the cable, no need to balance phases manually.
  • Pairs with 4 PV modules 500-600W+ (dep. on your preferred AC/DC ratio).
  • Inherently Rapid Shutdown compliant, no separate RSD system required.
  • Reduces potential points of failure (PPoF) by 75% over competing solutions.

APstorage

The APstorage solution is a battery agnostic AC-coupled solution. Installers can choose from a variety of compatible low-voltage batteries. It can be used as a partial backup home system upon grid outage, allow homeowners to operate in self-consumption to limit grid usage, or to take advantage of time of use rates to offset electricity costs.

Because it is AC-coupled, batteries can be charged from any grid-tied solar inverter. During a grid outage, DS3s can be to charge the batteries.

Key specs:

  • kW range: 5000VA, 7500VA surge for 10 seconds.
  • Operating voltage range: 240VAC nominal output, 211-264V.
  • Max / CEC efficiency: 97%
  • DC Battery Input Voltage: 40-60VDC.

UL listings: UL1741SB, UL 9540

Input (DC)DS3-SDS3-LDS3
Max. array power430W x2515W x2600W x2
Max. Voltage60V60V60V
Voltage range26V-60V26V-60V26V-60V
Minimum DC voltage / start voltage28V28V28V
Short-circuit current20A per input22.5A per input25A per input
MPP trackers / strings per MPP input2/12/12/1
Output (AC)
Nominal output power640VA768VA880VA
Max power640W768W880W
Nominal AC voltage208V or 240V208V or 240V208V or 240V
AC voltage range208V/183.04-228.8V; 240V/211V-264V208V/183.04-228.8V; 240V/211V-264V208V/183.04-228.8V; 240V/211V-264V
Max output current3.08A@208V/ 2.66A@240V3.7A@208V/ 3.2A@240V4.2A@208V/ 3.7A@240V
Rated grid frequency / range60Hz/58.8Hz-61.2Hz (HECO:57Hz-63Hz)60Hz/58.8Hz-61.2Hz (HECO:57Hz-63Hz)60Hz/58.8Hz-61.2Hz (HECO:57Hz-63Hz)
Power factor0.99/0.8 leading…0.8 lagging0.99/0.8 leading…0.8 lagging0.99/0.8 leading…0.8 lagging
Total harmonic distortion<3%<3%<3%
Efficiency
Max Efficiency97.3%97.3%97.3%
CEC Efficiency97%97%97%
Protection / safety features
List all that applyUL1741; UL1741-SA; UL1741-SB; CSA C22.2 No.107.1-16; FCC Part15B; ICES-003 Class B; IEEE1547;  SRD-V2.0; NEC2014 & NEC2017 & NEC2020 & NEC2023 Section 690.11 DC Arc-Fault circuit Protection NEC2014 & NEC2017 & NEC2020 & NEC2023 Section 690.12 Rapid Shutdown of PV systems on Buildings, Galvanically Isolated, Encrypted ZigBee Wireless, True Stäubli MC4 connectors, NEMA Type 6/IP67 enclosure.
  • Distributors: CED Greentech, Krannich, Soligent, Sonepar, Wesco, Fortune Energy, EDGES, iSolar Brokers, RENVU, Crescent Electric, ECO Distributing, Enertech, French Gerleman, GenPro, Ontility, Solar Wholesale, The Power Store, Van Meter, VP Supply, UMA Solar, and Wholesale Electric
  • sales.usa@apsystems.com
  • usa.apsystems.com

cps-america-logo

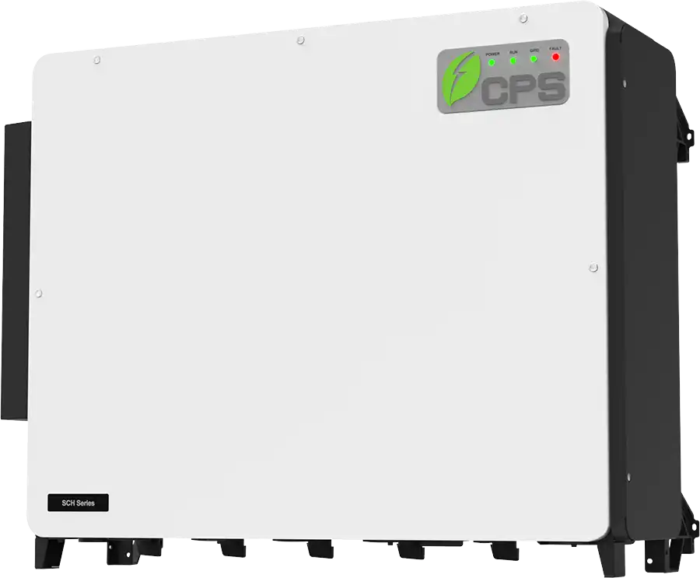

CPS America 350 kW

The 350kW high power CPS three-phase string inverters are designed for large-scale solar PV applications. The units are high performance with full power capacity up to 45 degrees C and include advanced and reliable inverters designed specifically for the North American environment and grid. High efficiencies, wide operating voltages, broad temperature ranges and NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. Each inverter includes 15 MPPTs and is available with 30 unfused PV string inputs. Additional features include integrated PID mitigation, reactive power at night functionality, and CAN communication capability. The CPS FlexOM solution enables communication, controls and remote product upgrades.

CPS 350kW-800V800Vac Class
Input (DC)
Max. array power
Max. Voltage1500Vdc
Operating Voltage range880-1300Vdc
Minimum DC voltage / start voltage550Vdc
Max PV Short-circuit current975A
MPP trackers / strings per MPP input15 MPPTs / 2 strings per MPPT
Output (AC)
Nominal output power
Max power350kW
Nominal AC voltage800Vac
AC voltage range680-880Vac
Max output current253A
Rated grid frequency / range60Hz / 57-63Hz
Power factor>0.99 (+/-0.8 adjustable)
Total Rated Current Distortion (TRD)<3%
Efficiency
Max Efficiency99.0%
CEC Efficiency98.5%
Additional features
Full power capacity up to 45C
Integrated PID mitigation
Reactive power at Night function
CAN communication capability

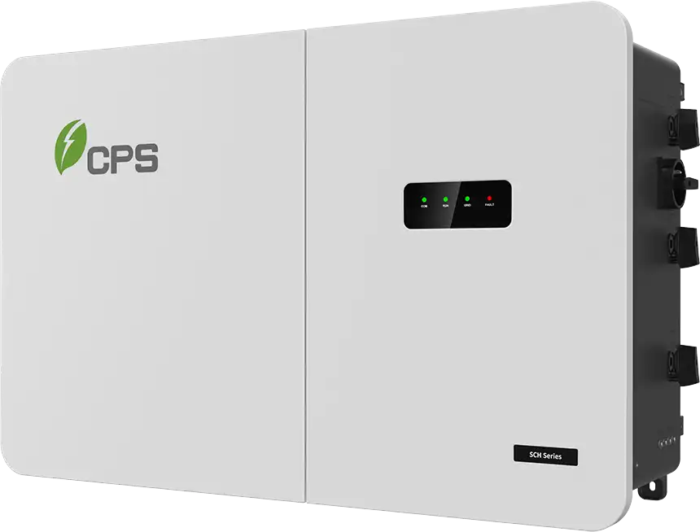

CPS 200 kW

The new CPS 200 kW-480 V three-phase string inverters are designed for solar PV applications with 480Vac service voltage. The units are high performance, advanced, and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.5% peak and 98.0% CEC, wide operating voltages, broad temperature ranges, and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications. The CPS 200 kW-480 V products ship with the Distributed or Centralized Wire Box, each fully integrated and separable with AC and DC disconnect switches. DC Enhanced wireboxes allow disconnection under short circuit conditions. The CPS FlexOM Gateway enables communication, controls, and remote product upgrades.



CPS 200kW-480V480Vac Class
Input (DC)
Max. array power340kW
Max. Voltage1500Vdc
Operating Voltage range860-1450Vdc
Minimum DC voltage / start voltage900Vdc
Max PV Short-circuit current450A
MPP trackers / strings per MPP input1 MPPT / 30 strings (distributed wirebox)
Output (AC)
Nominal output power
Max power200kW
Nominal AC voltage480Vac
AC voltage range423-528Vac
Max output current241A (@200kVA) / 253A (@ 210kVA)
Rated grid frequency / range60Hz / 57-63Hz
Power factor>0.99 (+/-0.8 adjustable)
Total Rated Current Distortion (TRD)<3%
Efficiency
Max Efficiency98.5%
CEC Efficiency98.0%
Additional features
Separable wire box design
Distributed & Centralized wirebox options
Integrated AC & DC switches
DC Enhanced protection
CEC-listed Smart Inverter functions
kVA Headroom feature

CPS hybrid

CPS America is excited to introduce its new 7.6-12kW single-phase hybrid inverters, designed to address the growing demand for scalable and efficient energy solutions. This system offers small C&I applications a reliable way to integrate solar power and battery storage. This comprehensive solution provides businesses with a seamless transition between grid-tied and off-grid modes, optimizing energy usage and reducing costs. This advanced hybrid inverter can be configured as either AC or DC coupled with an onsite PV array, offering up to three maximum power point tracking (MPPT) inputs for flexibility in system design. It also features an integrated generator input terminal, providing additional power backup when needed. The single-phase hybrid inverters integrate seamlessly with CPS's modular 5-20 kWh batteries, allowing users to stack up to 60 kWh of storage capacity.



CPS 7.6-12kW Hybrid Inverters240Vac Class
Input (DC)
Max. array power11.4/14.4/18kW
Max. Voltage600Vdc
Operating PV Voltage range120-550Vdc
Minimum DC voltage / start voltage150Vdc
Max PV Short-circuit current40A per MPPT
MPP trackers / strings per MPP input3 MPPTs / 2 strings per MPPT
Output (AC)
Nominal output power
Max power7.6/9.6/12kW
Nominal AC voltage240/208V (120Vac)
AC voltage range183-228.8Vac (@208Vac) / 211.2-264Vac (@240Vac)
Max output current200A (on grid)
Rated grid frequency / range60Hz / 57-63Hz
Power factor>0.99 (+/-0.8 adjustable)
Total Rated Current Distortion (TRD)<3%
Efficiency
Max Efficiency97.5%
CEC Efficiency96.5%
Additional features
Separable wire box design
Integrated RSD functionality
Integrated AC & DC switches
PV, Battery, and Generator inputs

The CPS 25kW-208V three phase string inverters are designed and optimized for rooftop and carport applications with 208Vac service voltages. The CPS 25kW product ships with the Rapid Shutdown wire-box, fully integrated and separable with touch safe fusing, monitoring, and AC and DC disconnect switches. The integrated PLC transmitter in the Rapid Shutdown wire-box enables PVRSS certified module-level rapid shutdown when used with the TIGO, APS, and NEP products. The CPS Flex Gateway enables monitoring, controls and remote product upgrades.

  • 208V AC output
  • 3 MPPTs with 2 inputs each for maximum flexibility
  • Integrated RSD wire-box options with TIGO, APS, and NEP
  • NEC 2017/2020 compliant and UL listed Arc-Fault protection
  • Separable wire-box design for fast service

CPS 36kW V2 String Inverter

The new, V2 version of the 36kW (36kVA) CPS three-phase string inverter is designed for rooftop and carport applications. The units are high performance, advanced and reliable inverters designed specifically for the North American environment and grid. High efficiency at 98.8% peak and 97.4% CEC, wide operating voltages, broad temperature ranges and a NEMA Type 4X enclosure enable this inverter platform to operate at high performance across many applications.  CPS 36KTL V2 ships with either the Standard wire-box or the Rapid Shutdown wire-box, each fully integrated and separable with touch-safe fusing, monitoring, and AC and DC disconnect switches. The integrated PLC transmitter in the Rapid Shutdown Wire-box enables PVRSS certified module-level rapid shutdown when used with APS RSD-S-PLC/RSD-D products. The CPS FlexOM Gateway enables monitoring, controls and remote product upgrades.

The CPS SCA36KTL-DO-US-480-V2 is currently UL 1741-SB listed and is expected to receive UL 3741 listing with IronRidge, Sollega, Panelclaw, and Unirac by Q2 2023.

  • Separable wire-box for simplified O&M and fast service
  • 3 MPPTs with 5 inputs per MPPT
  • Optional FlexOM Gateway enables remote firmware upgrades
  • Standard and integrated RSD wire-box options
  • Copper- and Aluminum-compatible AC connections

Enphase Energy logo

IQ8 Microinverter

The IQ Series Microinverters are Enphase’s smartest microinverters yet. They are the industry’s first grid-forming microinverters, enabling solar-only backup during grid outages without the immediate need for battery storage. This is facilitated by a specialized application-specific integrated circuit (ASIC) that allows the microinverters to operate in both grid-tied and off-grid modes, providing homeowners with enhanced energy resilience. Additionally, the IQ8 series supports split-phase power conversion, optimizing the efficiency of DC to AC power transformation. Each microinverter is designed to handle one panel each which enables easy installation and a distributed architecture to easily monitor every panel independently. IQ8 Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years. IQ8 Microinverters are UL-Listed as PV Rapid Shutdown equipment and conform with various regulations when installed according to manufacturer’s instructions.

 IQ8+IQ8MCIQ8AC
 @240 VAC@240 VAC@208 VAC@208 VAC@240 VAC
Input (DC)
Max. input power440 W460 W500 W
Max. input DC voltage60 V60 V60 V
Voltage operating range16-58 V18-58 V18-58 V
Minimum input DC voltage16 V18 V18 V
Max input DC short-circuit current25 A25 A25 A
MPPT voltage range / peak power tracking voltage27-45 V25-45 V28-45 V
Output (AC)
Peak output power300 VA330 VA315 VA366 VA350 VA
Max cont. output power290 VA320 VA310 VA349 VA345 VA
Nominal grid voltage240 V240 V208 V240 V208 V
Grid voltage range211-264 V211-264 V183-229 V211-264 V183-229 V
Max cont. output current1.0 A1.33 A1.49 A1.45 A1.66 A
Nominal Frequency606060
Extended frequency range47-68 Hz47-68 Hz4768 Hz
Power factor setting1.01.01.0
Total harmonic distortion<5%<5%<5%
Efficiency
Max Efficiency97.7%97.4%97.2%97.3%97.2%
CEC Efficiency97%97%96.5%97.0%96.5%
Protection / safety features
List all that applyCA Rule 21 (UL 1741-SA), UL 62109-1, IEEE 1547:2018 (UL 1741-SB 3rd Ed.), FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01. This product is UL Listed as PV rapid shutdown equipment and conforms with NEC 2014, NEC 2017, NEC 2020, and NEC 2023 section 690.12 and C22.1-2018 Rule 64-218 rapid shutdown of PV systems, for AC and DC conductors, when installed according to the manufacturer’s instructions.CA Rule 21 (UL 1741-SA), UL 62109-1, IEEE 1547:2018 (UL 1741-SB 3rd Ed.), FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01. This product is UL Listed as PV rapid shutdown equipment and conforms with NEC 2014, NEC 2017, NEC 2020, and NEC 2023 section 690.12 and C22.1-2018 Rule 64-218 rapid shutdown of PV systems for AC and DC conductors when installed according to the manufacturer’s instructions.CA Rule 21 (UL 1741-SA), UL 62109-1, IEEE 1547:2018 (UL 1741-SB 3rd Ed.), FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01. This product is UL Listed as PV rapid shutdown equipment and conforms with NEC 2014, NEC 2017, NEC 2020 and NEC 2023 section 690.12 and C22.1-2018 Rule 64-218 rapid shutdown of PV systems for AC and DC conductors when installed according to the manufacturer’s instructions.

Enphase IQ8P-3P

The IQ8 Commercial Microinverters are built to support the small commercial solar industry by simplifying the design and installation process, improving energy harvest with higher uptime, expanding system monitoring capabilities compared to similar solutions, and offering industry-leading safety through an alternating current (AC)-based system using low-voltage power. The microinverters are compatible with a wide range of solar panels including 54, 60, 66, 72, and 144 cell panels with full or split cell, and with a range of 380 W to 640 W, making the products viable to support projects now and in the future. The distributed architecture of the Enphase system makes designing projects more seamless by reducing complexity and enabling an optimized panel layout for maximum energy harvesting on crowded or shaded small commercial rooftops. All IQ8 Microinverters activated in the United States and Canada, and a 12-year warranty for products activated in Mexico.

 IQ8P-3P
 72-E-US72-E-DOM-US
Input (DC)
Max. input power640 W
Max. input DC voltage63 V
Voltage operating range16-63 V
Minimum input DC voltage16 V
Max input DC short-circuit current25 A
MPPT voltage range / peak power tracking voltage35.5-53 V
Output (AC)
Peak output power480 VA
Max cont. output power475 VA
Nominal grid voltage208 V220 V
Grid voltage range183-229 V198-242 V
Max cont. output current2.28 A2.16 A
Nominal Frequency60
Extended frequency range47-68 Hz
Power factor setting1.0
Total harmonic distortion<5%
Efficiency
Max Efficiency97.8%
CEC Efficiency97.5%
Protection / safety features
List all that applyCA Rule 21 (UL 1741-SB), UL 62109-1, UL1741/IEEE1547, FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01. This product is UL Listed as PV rapid shutdown equipment and conforms with NEC 2014, NEC 2017, and NEC 2020 section 690.12, C22.1-2018 Rule 64-218 rapid shutdown of PV systems for AC and DC conductors, when installed according to manufacturer’s instructions, and Build America, Buy America Act (BABA) and Buy American Act (BAA) compliance for IQ8P-3P-72-E-DOM-US.



enphase IQ8HC

With peak output AC power of 384W, IQ8HC, and IQ8X Microinverters are designed to seamlessly pair with a full range of solar modules up to 540W DC. IQ8HC Microinverters are available for all of North America and can manage a continuous DC current of 14 amperes, supporting higher-powered solar modules through increased energy harvesting. IQ8X Microinverters are available in the United States, supporting solar modules with higher output DC voltage and cell counts, such as 96 cells, 80 half-cut cells, and 88 half-cut cells. The high-quality manufacturing process and low failure rates unlock an industry-leading 25-year warranty for all IQ8 Microinverters activated in the United States and Canada, and a 12-year warranty for products activated in Mexico.

 IQ8HCIQ8X
 @208 VAC@208 VAC@240 VAC@208 VAC72-E-US
Input (DC)
Max. input power540 W540 W
Max. input DC voltage60 V79.5 V
Voltage operating range18-58 V25-79.5 V
Minimum input DC voltage18 V25 V
Max input DC short-circuit current25 A16 A
MPPT voltage range / peak power tracking voltage29.5-45 V43-60 V
Output (AC)
Peak output power384 VA366 VA384 VA366 VA
Max cont. output power380 VA360 VA380 VA360 VA
Nominal grid voltage240 V208 VA240 V208 V208 V
Grid voltage range211-264 V183-229 V211-264 V183-229 V183-229 V
Max cont. output current1.58 A1.73 A1.58 A1.73 A2.28 A
Nominal Frequency6060
Extended frequency range47-68 Hz47-68 Hz
Power factor setting1.01.0
Total harmonic distortion<5%<5%
Efficiency
Max Efficiency97.3%97.2%97.3%97.0
CEC Efficiency97%96.5%96.5%96.5
Protection / safety features
List all that applyCA Rule 21 (UL 1741-SA), UL 62109-1, IEEE 1547:2018 (UL 1741-SB 3rd Ed.), FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01. This product is UL Listed as PV rapid shutdown equipment and conforms with NEC 2014, NEC 2017, NEC 2020, and NEC 2023 section 690.12 and C22.1-2018 Rule 64-218 rapid shutdown of PV systems for AC and DC conductors when installed according to the manufacturer’s instructions.CA Rule 21 (UL 1741-SA), UL 62109-1, IEEE 1547:2018 (UL 1741-SB 3rd Ed.), FCC Part 15 Class B, ICES-0003 Class B, CAN/CSAC22.2 NO. 107.1-01. This product is UL Listed as PV rapid shutdown equipment and conforms with NEC 2014, NEC 2017, NEC 2020, and NEC 2023 section 690.12 and C22.1-2018 Rule 64-218 rapid shutdown of PV systems for AC and DC conductors when installed according to the manufacturer’s instructions.

Fronius

Fronius Primo

With power categories ranging from 3.8 kW to 15.0 kW, the Fronius Primo is the ideal compact single-phase inverter for residential applications. This sleek inverter is equipped with the SnapINverter hinge mounting system, which allows for lightweight, secure, and convenient installation. The Primo inverters provide maximum safety, reliability, and highest energy yield even on complex roofs of shaded systems – giving customers the best return on their solar investment.

  • Two size ranges: Fronius Primo 3.8 – 8.2 & Fronius Primo 10.0 – 15.0
  • Smart shade mitigation with Dynamic Peak Manager
  • SuperFlex Design for complex roofs and maximum design flexibility
  • Wide voltage windows from 80V to 1,000V
  • Integrated energy management feature
  • Truly field-serviceable

Fronisu Symo

Size / category: 10.0 kW – 24.0 kW  /   Commercial

The Fronius Symo Advanced inverter line features six models ranging from 10 kW to 24 kW, ideal for commercial and industrial applications. The Symo Advanced is lightweight and combines high-power density with flexibility to ensure the fastest possible installation for your PV project. The small number of total power conversion electronics adds to the high serviceability from any mounting spot. You get total system granularity with only a low number of system components.  Developed with 2 Multiple Power Point Trackers and Dynamic Peak Manager, our shade mitigation solution, the Fronius Symo Advanced ensures your PV system operates at maximum performance and efficiency.

UL 3741 listed? Yes, with use of Unirac, IronRidge, PanelClaw, Schletter and AeroCompact flat roof mounting systems

Key specs

  1. 208V AC and 480 AC versions available
  2. Smart shade mitigation with Dynamic Peak Manager
  3. SuperFlex Design for complex roofs and maximum design flexibility
  4. SunSpec transmitter for Module Level Rapid Shutdown integrated
  5. Truly field-serviceable

GoodWe

GoodWe inverter

The GoodWe SMT-US Series inverter is ideal for medium and large-scale commercial installations. Harvest maximum solar energy and generate environmental-friendly power for an increased return on investment. Its unique fuse-free design makes it exceptionally easy to maintain for operators, saving time and money.

  • Up to 6 MPPTs for ultimate design flexibility
  • 150% DC input oversizing
  • Type II Surge Protection for both DC and AC

The SMT-US's 180V-980V wide operating voltage range allows the PV system to begin producing power earlier in the day, fully maximizing solar energy generation. With a max. 15A DC input current per string, the SMT-US Series is compatible with many high-power modules, giving integrators greater versatility in module selection and system design. Up to 6 MPPTs guarantee optimal energy production, even in areas with shading, delivering best-in-class ROI for commercial systems.

Key specs:

  • kW range: 22 and 28 (208V) 50 and 60KW (480V)
  • Operating voltage range: 180V-980V
  • of MPPTs / MPPT voltage range: 6 MPPT’s/550V-850V
  • Max / CEC efficiency: 98.5%
  • Rapid Shutdown integrated
  • AFCI integrate
  • AC and DC surge protection integrated

UL listings: PVRSS capability for NEC-2020, CSA, C22.2, UL1699B, UL1741, UL1741SB,  IEEE1547 (with California,Hawaii). California CEC efficiency, California CSIP, ISO/IEC 17065, IEEE2030.5, EMC certification testing

A-ES 01

The 5-9.6-kW, single-phase A-ES is one of the only hybrid inverter on the market with 4 MPPTs. With UPS-level switching, the inverter can switch to backup in less than 10 milliseconds in case of power outage. This ensures household appliances are not compromised.

  • 4 MPPTs, 50% DC oversizing
  • AFCI & Rapid Shutdown
  • UPS-level switching
  • Smart Meter integrated
  • Optional AC bypass switch

us.goodwe.com | On-demand Webinar: GoodWe’s residential and C&I ESS Solutions


hoymiles logo square

HM-700NT

Hoymiles 2-in-1 microinverter can connect up to 2 panels at once and maximize the PV production of your installation. With a maximum DC voltage of 60 V, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218. The model equipped with reactive power control and can meet the requirements of IEEE 1547, UL 1741 and CA Rule21.

  • Peak output power: 700VA
  • Commonly used module power: 280 to 470W+
  • Maximum input voltage: 60V
  • Maximum input current: 11.5A
  • Enclosure rating: IP67

HM-1500NT

Hoymiles 4-in-1 microinverter is one of the most cost-effective module-level solar solutions, as it can support up to 4 panels at once and maximize the PV production of your installation. With a maximum DC voltage of 60 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218. Both models listed are equipped with reactive power control and can meet the requirements of IEEE 1547, UL 1741 and CA Rule 21.

  • Peak output power: 1500VA
  • Commonly used module power: 300 to 505W+
  • Maximum input voltage: 60V
  • Maximum input current: 11.5A
  • Enclosure rating: IP67

HMS-500-1T-NA

Hoymiles HMS-500-1T-NA series of microinverter is suitable for high-powered solar panels, which rank among the highest for 1-in-1 microinverters.

Each microinverter can be connected to one panel and used in various applications, making it one of the most flexible solar solutions. With a maximum DC voltage of 65 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218.

The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.

Key specs:

  • Peak output power: 350/400/450/500/500 VA
  • Operating voltage range: 16-65 V
  • 1 MPPT, MPPT voltage range 16-60 V
  • Max / CEC efficiency:7%
  • Commonly used module power: 280 to 470W+
  • Maximum input voltage: 65V
  • Maximum input current: 16A
  • Enclosure rating: IP67

UL listings: UL 1741, UL 1741 SB

HMS-1000-2T-NA

Hoymiles HMS-1000-1T-NA series of microinverter is suitable for high-powered solar panels, which rank among the highest for 2-in-1 microinverters. Each microinverter can connect up to 2 panels, with independent MPPT and monitoring maximizing the power production of your installation. With a maximum DC voltage of 65 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218. The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.

Key specs:

  • Peak output power: 700/800/900/1000
  • Operating voltage range: 16-65 V
  • 2 MPPT, MPPT voltage range 16-60 V
  • Max / CEC efficiency:7%
  • Commonly used module power: 280 to 670W+
  • Maximum input voltage: 65V
  • Maximum input current: 2 × 16A
  • Enclosure rating: IP67

UL listings: UL 1741, UL 1741 SB

HMS-2000-4T-NA

Hoymiles HMS-2000 series of microinverter is suitable for high-powered solar panels, which rank among the highest for 4-in-1 microinverters. Each microinverter can connect up to 4 panels, with independent MPPT and module-level monitoring maximizing the power production of your installation. With a maximum DC voltage of 65 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218. The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.

Key specs:

  • Peak output power: 1600/1800/2000 VA
  • Operating voltage range: 16-65 V
  • 4 MPPT, MPPT voltage range 16-60 V
  • Max / CEC efficiency:7%
  • Commonly used module power: 320 to 670W+
  • Maximum input voltage: 65V
  • Maximum input current: 4 × 16A
  • Enclosure rating: IP67

UL listings: UL 1741, UL 1741 SB

Hoymiles HMS-2000-4T-NA

Hoymiles new generation three-phase microinverter HMT-2000-4T-208-NA series is designed to accommodate the high-powered PV modules, with maximum output power up to 2000 VA and maximum DC input current up to 16 A. It supports three-phase Wye/Delta network. The innovative 4-input design enables faster installation and lower cost, and makes the HMT-2000-4T-208-NA series a very cost-effective choice. The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU. Smart platform S-Miles Cloud makes it possible to module-level monitoring and remote O&M.

Key specs:

  • Peak output power: 1600/1800/2000 VA
  • Operating voltage range: 16-65 V
  • 4 MPPTs, MPPT voltage range 16-60 V
  • Max / CEC efficiency:5%
  • Commonly used module power: 320 to 670W+
  • Maximum input voltage: 65V
  • Maximum input current: 4 × 16A
  • Enclosure rating: IP67

UL listings: UL 1741, UL 1741 SB

hoymiles HYS-LV-USG1 Series

The HYS-LV-USG1 Series is a high-performance single-phase hybrid inverter with excellent reliability, including power classes ranging from 3.8 kW to 11.5 kW. It can support up to 10 inverters in parallel with a maximum power of 115 kW. The intelligent EMS function supports self-consumption mode, economic mode, and backup mode for multi-scenario applications. Monitoring management through S-Miles Cloud allows users to remotely diagnose and track individual system's performance over time, maximizing the total solar power production and battery utilization.

Key specs:

  • Output power: 3.8/4.8/6.0/7.6/9.6/11.5 kW
  • Operating voltage range: 16-65 V
  • 2 MPPTs, MPPT voltage range 125-500 V
  • efficiency 97.6%, CEC efficiency 97.0%
  • Battery voltage range: 40V–60V
  • PV input Current: 16-32A
  • DC/AC ratio up to 150%
  • Protection degree: Type 4X

UL listings: UL 1741, UL 1741 CRD, UL 1741 SB

Hoymiles HAS-LV-USG1 Series

The HAS-LV-USG1 Series is for retrofit application, including power classes ranging from 3.8 kW to 11.5 kW. It can be installed with existing PV inverters, forming an AC-coupled system. The intelligent EMS function supports self-consumption mode, economic mode, and backup mode for multi-scenario applications. Monitoring management through S-Miles Cloud allows users to remotely diagnose and track individual system's performance over time, maximizing the total battery utilization.

Key specs:

  • 8/4.8/6.0/7.6/9.6/11.5 kW
  • Operating voltage range: 16-65 V
  • efficiency 97.6%, CEC efficiency 97.0%
  • Battery voltage range: 40V–60V
  • battery discharge to AC efficiency 95.0%
  • 10 inverters in parallel
  • Protection degree: Type 4X

UL listings: UL 1741, UL 1741 CRD, UL 1741 SB

HRSD-1C

As part of Hoymiles rapid shutdown solution for PV system, HRSD-1C/2C can be connected with one and two module respectively. It meets NEC 2017, NEC 2020, UL 1741 and SunSpec Rapid Shutdown requirements, guaranteeing PV system safety. When installed with and receiving a "permission to operate" signal from Hoymiles Transmitter, HRSD starts proper operation of PV system. In case of emergency, PV system would enter module-level rapid shutdown mode by simply disconnecting the AC power of Transmitter or using an external initiator.

  • Input Voltage Range: 8–80V
  • Communication Type: SunSpec PLC
  • Maximum Current: 15 A (20 A or 25 A optional)
  • Shutdown Output Voltage: 1V
  • Outdoor Rating: IP68 / NEMA6P

DTU-Pro-S and DTU-Pro(Same)

Hoymiles gateway DTU-Pro is a data transfer unit which collects information and data of PV microinverter using 2.4G wireless solution (DTU-Pro-S uses Sub-1G wireless) and sends them to S-Miles Cloud, Hoymiles monitoring System, using different communication options such as Ethernet, Wi-Fi, GPRS or 4G. With DTU-Pro, users can easily read module-level data and alarms, realize remote operation and maintenance of PV system at any time, from anywhere on S-Miles Cloud. Pro maximum distance is 200m. Pro-S maximum distance is 400m.

Hoymiles website


morningstar logo

SureSine Inverters no logos

SureSines are the polar opposite of “me too” thinking, designed for the “mission-critical” industrial applications so important to Morningstar  customers. Six models, from 150 to 2500 Watts in both North American 120V and International 230V versions.  Models support combinations of 12/24/48V batteries. The range covers off-grid industrial systems in diverse applications such as rural development, telecommunications and wireless service providers, oil & gas, and more. They have superior thermal performance with fanless design for higher reliability– for example, the 300W model doesn’t derate until 45 C and delivers 200W at 60 C. System-level integration and communication with Morningstar charge controllers. Multiple AC hardwire remote terminal options on selected models. UL 1741 listed, and also IEC-62109-1, IEC 62109-2, and CE/UKCA compliant.

  • Power Surge capability at 40 C (under 5 seconds) is twice the rated output power
  • Operating temperature range is -40 C to +60 C
  • Peak efficiency ranges from 89-92%, depending on the model
  • Fanless design—no fans to fail for greater reliability and efficiency
  • Full protections built-in
  • Industry leading safety and low noise
  • Status LEDs notify system alerts and ensure reliable operation
  • Bluetooth Android and iOS  mobile apps
  • Adjustable Low Voltage disconnect (LVD)

northern electric power nep-logo

NEP NEPTUNE three-phase

NEP added NEPTUNE 3-phase inverters to go with its RSD solutions. These inverters include fully integrated transmitters and provision for NEP gateway to be installed inside the inverter wire-boxes. Just one gateway is needed to support numerous inverters (wifi, Ethernet and cellular internet connectivity). 5 models; 30kW-208Vac and 33,50,75,100kW-480Vac.

NEP

The BDM series involves nimble engineering, better service execution and easier positioning. Fill voids and gaps of content incumbents to generate customer focused value. A key attribute is its metal exterior, which avoids the more common failures associated with plastic module-level power electronics on hot roofs.

NEP microinverter PVG-2-RSD

NEP’s unique, two-way data communication Rapid Shutdown solution enables installer confidence that rapid shutdown is functioning correctly. This is valuable for safety assurance, code compliance, AHJ approval and characterization of the array performance upon commissioning. Further, NEP includes IV Curve trace ‘service mode’ to enable easier measurements at time of commissioning and through the life of the project. NEP’s optional data gateway is available for remote PV panel diagnostics and data performance.

  • PVG-1 and PVG-2 for single and dual PV panels
  • Mounting for racking rail and optional clip available for PV module frame mount
  • Two way data flow for safety and performance with optional NEP gateway
  • Transmitters available in stand-along enclosure and integrated with leading C&I inverters providers

NEP's Rapid Shutdown units are 20Amp models. The PVG-2 (dual PV) and PVG-3 (3 PV modules) are built with a metal enclosure. Why metal? The industry has seen numerous examples of RSD reliability issues with Non-NEP units. To reduce the risk of such, a metal enclosure improves heat dissipation and overall thermal management. Also, a metal enclosure is more robust, ‘fail-safe’ engineering investment to lower overall risk and improve the expected life-span of the devices. These same units are tested to 25Amp in Europe (CE marking). Lots of design margin with this improvement.

  • Distributors: CED, REXEL, CPS (Chint Power Systems), Solwel
  • northernep.com

SMA America logo

STP_CORE1_WhtBG

The Sunny Tripower CORE1 is the only inverter that offers an intelligent IV curve diagnostic, advanced string monitoring, and SMA Smart Connected. The world’s first free-standing PV inverter for commercial rooftops, carports, ground mount and repowering legacy solar projects, the Sunny Tripower CORE1 enables logistical, material, labor, and service cost reductions, and is the most versatile, cost-effective commercial solution available.

  • First commercial system listed to standard UL 3741 PV Hazard Control for NEC 690.12 compliance
  • System visibility with intelligent IV curve diagnostic and advanced string monitoring
  • Integrated SunSpec PLC signal for module-level rapid shutdown compliance to 2017 NEC
  • ShadeFix optimization generates more power
  • SMA Smart Connected, Sunny Portal, and SMA’s Online Service Center provide automatic, proactive, and unmatched service support

STPxx-50_01_Wall_01

The Sunny Tripower X is the latest in commercial solar energy generation and can be used in a variety of applications including but not limited to rooftop, carport, and ground mount applications. As a comprehensive solution, the integrated System Manager enables complete energy management from one platform while combining state-of-the-art technology into one device. This comprehensive design ensures small to medium-sized businesses can accommodate future energy management and needs. SMA Sunny Tripower X key features: High flexibility in system design with 3 MPP trackers and up to 150% overdimensioning capabilities. Easier installation with an overall lighter weight and wall-or-rack mount. Flexible and scalable system sizing: 30 kW, 25 kW & 20 kW. Integrated System Manager allows monitoring and control of up to 5 inverters (with up to 150 kVA) and 1 energy meter. SMA ShadeFix offers next level performance optimization

UL 3741 listings:

  • Unirac
  • IronRidge
  • Panelclaw
  • Aerocompact
  • Sollega
Sunny Tripower X20 kW25 kW30 kW
Input (DC)
Max. array power3000 Wp37500 Wp45000 Wp
Max. Voltage1000 V
Voltage range350 V to 800 V430 V to 800 V515 V to 800 V
Minimum DC voltage / start voltage150 V / 188 V
Short-circuit current24 A / 37.5 A
MPP trackers / strings per MPP input3/2
Output (AC)
Nominal output power20000 W25000 W30000 W
Max power20000 VA25000 VA30000 VA
Nominal AC voltage480 V / 277 V
AC voltage range244 V to 305 V
Max output current24 A30 A36 A
Rated grid frequency / range60 Hz / -6 Hz to +6 Hz
Power factor1 / 0.8 leading to 0.8 lagging
Total harmonic distortion< 3 %
Efficiency
Max Efficiency98.2%98.6%98.5%
CEC Efficiency97.5%98%98%
Protection / safety features
Certificates and approvalsUL 62109-1, UL 1699B Ed. 1, CAN/CSA 22.2 No. 62109-1:16 / 62109-2:16, PV Rapid

Shutdown System Equipment in accordance with UL1741:2021, UL 3741

Peak3 FLEX

The Sunny Highpower PEAK3 FLEX US-21 (PEAK3 FLEX) model delivers adjustable AC outputs for power, current and voltage. The PEAK3 FLEX can be tuned to match older inverters that might operate at now uncommon voltages, like 385VAC or 400VAC, thus enabling customers to leave the transformers in place and avoid costly or time-consuming studies.  Similarly, the AC output current can be adjusted to help customers avoid replacing AC wires and OCPD equipment.

Adjusting the AC Voltage downward also widens the DC operating window of this 1500VDC inverter, so the PEAK3 FLEX can repower older projects with central or string inverters that were built at 600VDC or 1000VDC. Once field commissioned to the desired AC output values, the UL label will be completed to match, and those parameter settings are lockable behind OEM password protection.  The flexibility in design, capacity and capability makes the Sunny Highpower PEAK3 FLEX the perfect inverter solution for repowering projects.



SMA Sunny Highpower PEAK3-FLEX-US-21
Input (DC)
Max. array power344kWp
Max. Voltage1500VDC
Voltage range298v-1500v
Minimum DC voltage / start voltage
Short-circuit current325A
MPP trackers / strings per MPP input1
Output (AC)
Nominal output power52-172kVA
Max power172kVA
Nominal AC voltage200-660VAC
AC voltage range200-660VAC
Max output current151A
Rated grid frequency / range60Hz / 50 Hz, 60 Hz and -6 Hz…+6 Hz
Power factor1 / 0.8 leading…0.8 lagging
Total harmonic distortion<3%
Efficiency
Max Efficiency99.1%
CEC Efficiency99.0% (at 600VAC)
Protection / safety features
List all that applyIEEE 1547:2018, UL 1741-SA - CA Rule 21, HECO Rule 14H, UL 1741-SB, UL 62109, UL 1998, CAN/CSA-C22.2 No.62109, FCC Part 15, Class A
Advanced Grid Support CapabilitiesL/HFRT, L/HVRT, Volt-VAr, Volt-Watt, Frequency-Watt, Ramp Rate Control, Fixed Power Factor
Additional Features25-year Design Life, Opti-Cool, Smart Connected, Sunny Portal, External API, Modbus, FTP
Derate Temperature (Full Power at 600VAC)52°C (125°F)
Operating Temperature-25°C...+60°C (-13°F...+140°F)
Storage Temperature-40°C…+70°C (-40°F…+158°F)

For more info:


schneider electric logo

Schneider HY8K1NA1 hybrid inverter

The Schneider Inverter is a hybrid inverter, connecting the Boost battery and solar panels to the home and grid. The Inverter has DC ports for Boost and solar, with 3 battery inputs and 4 MPPT inputs for solar. When the Inverter is installed with Boost and a Schneider Pulse CSED or Backup Controller, the system automatically powers the home during a grid outage. Powerful 100A LRA load start capability and 13.4 kW peak power provides reliable backup power. The Schneider Inverter and Boost system has the flexibility to be paired with AC coupled or DC coupled solar. With the Schneider Home app, homeowners gain visibility on solar production, battery usage, and home energy consumption. Optional accessories allow monitoring the energy cost of individual circuits, appliances, and devices, as well as automated scheduling and control through the app. For installers, the commissioning app will save time, while the installer portal web app enables ongoing system monitoring and remote troubleshooting.

Schneider Inverter7.7 kW
Input (DC)
Max. array power15.4 kW DC @STC
Max. Voltage600 Vdc
Voltage range50-550 Vdc
Minimum DC voltage / startup voltage100 Vdc
Short-circuit current16A x 4
MPP trackers / strings per MPP input4
Output (AC)
Nominal output power7.68 kW
Max power13.4 kW (5 seconds)
Nominal AC voltage240 V
AC voltage range211 – 264 V
Max output current56A ( 5 seconds)
Rated grid frequency / range60 Hz +/- 0.1 Hz
Power factor1.0
Total harmonic distortion< 3%
Efficiency
Max Efficiency98%
CEC Efficiency97%
Protection / safety features
List all that applyUL1741, UL 1741 PVRSS, UL1699B, UL95404, CSA C22.2 No. 107.1-16, UL1741 SA, UL1741 SB, IEEE1547-2018, CA Rule 21, PREPA, FCC – Part 15 Subpart B Class B, ICES-003 Class B, RSS-Gen Issue 5, AC 156
General Specifications
Warranty10 years
Enclosure TypeType 4X
Weight102 lbs
SafetyIntegrated Rapid Shutdown Transmitter, ground fault detection, battery reverse polarity
Dimensions650 x 570 x 165 mm



Schneider-XW-Pro

The XW Pro leads Schneider Electric Solar’s hybrid inverter range, as it provides installers with the flexibility to design and install a complete solar and storage system. The XW Pro offers a high overload power rating of 1.75x with the ability to stack up to 4 inverter units to increase overall power output. Because of its scalable and adaptable infrastructure, the XW Pro can also be integrated with lithium-ion batteries for solar and storage, or backup power systems without solar. Schneider Electric’s solar hybrid inverters come with a complete ecosystem of accessories to enable efficient installation. This includes integration with MPPT charge controllers and Insight Energy Management, Schneider Electric’s energy management software that allows solar professionals to remotely manage multiple installation sites with ease.

  • Reliable performance with a 6.8 kW output with up to 12 kW peak overload
  • Flexibility in installations and operations with Stacking capability of up to 4 units in single-phase or 6 units in 3-phase
  • Compatibility with a wide range of battery technologies, including Lithium-ion battery integration
  • Optional integration with generator
  • Compatible for use across a wide range of applications such as grid-tied, off-grid, self-consumption, backup power

siemens logo

KACO blueplanet

Siemens KACO BP TL3125 kW Class155 kW Class
Input (DC)
Max. array powersee Isc limitsee Isc limit
Max. Voltage1500Vdc1500Vdc
MPP Voltage Range875-1300Vdc875-1300Vdc
Minimum DC voltage / start voltage900V / 1000Vdc900V / 1000Vdc
Short-circuit current300A300A
MPP trackers / strings per MPP input11
Output (AC)
Nominal output power125KW / 137.5KVA155KW / 155KVA
Max power137.5 KVA155 KVA
Nominal AC voltage600Vac600Vac
AC voltage range480-760Vac480-760Vac
Max output current3 x 132.3A3 x 152.0A
Rated grid frequency / range55-65Hz55-65Hz
Power factor0.3 ind. - 0.3 cap.0.3 ind. - 0.3 cap.
Total harmonic distortion<3%<3%
Efficiency
Max Efficiency99.20%99.10%
CEC Efficiency99.0%98.9%
Standby Consumption<10W7W
Protection / safety features
CommunicationEthernet, RS 485Ethernet, RS 485
Sunspec compliantYesYes
DC ConnectionCable Lugs for 2 pairs 500MCM or 1 pair 600MCM Cu/AlCable Lugs for 2 pairs 500MCM or 1 pair 600MCM Cu/Al
AC ConnectionCable Lugs for 1 per phase 500MCM max Cu/AlCable Lugs for 1 per phase 500MCM max Cu/Al
AC DisconnectOptionalOptional
CertificationUL1741 SA/SBUL1741 SA/SB
Audible Noise59.2dB59.2dB
Weight78.2kg / 172.4lb78.2kg / 172.4lb
Warranty5 Year Standard, 10 year Optional5 Year Standard, 10 year Optional
Made in USAYesYes

Siemens Integrated-KACO-string-inverter-PV-rack_original (1)

Siemens Virtual Central Inverter1MW (8 x 125KW) Rack1.5MW (12 x 125KW) Rack
Input (DC)
Max. array powersee Isc limit per invertersee Isc limit per inverter
Max. Voltage1500Vdc1500Vdc
MPP Voltage Range875-1300Vdc875-1300Vdc
Minimum DC voltage / start voltage900V / 1000Vdc900V / 1000Vdc
Short-circuit current8 x 300A12 x 300A
MPP trackers / strings per MPP input8 (1 per inverter)12 (1 per inverter)
Output (AC)
Nominal output power1MW / 1.1MVA1.5MW / 1.65MVA
Max power1.1 MVA1.65MVA
Nominal AC voltage600Vac600Vac
AC voltage range480-760Vac480-760Vac
Max output current3 x 1058.4A3 x 1587.6A
Rated grid frequency / range55-65Hz55-65Hz
Power factor0.3 ind. - 0.3 cap.0.3 ind. - 0.3 cap.
Total harmonic distortion<3%<3%
Efficiency
Max Efficiency99.20%99.20%
CEC Efficiency99.0%99.0%
Standby Consumption<10W per inverter<10W per inverter
Protection / safety features
CommunicationEthernet, RS 485Ethernet, RS 485
Sunspec compliantYesYes
DC Connection per inverterCable Lugs for 2 pairs 500MCM or 1 pair 600MCM Cu/AlCable Lugs for 2 pairs 500MCM or 1 pair 600MCM Cu/Al
AC Connection per inverterCable Lugs for 1 per phase 500MCM max Cu/AlCable Lugs for 1 per phase 500MCM max Cu/Al
AC DisconnectVia Panelboard BreakerVia Panelboard Breaker
CertificationUL1741 SA/SBUL1741 SA/SB
Audible Noise59.2dB59.2dB
Weight (each inverter)78.2kg / 172.4lb78.2kg / 172.4lb
Warranty5 Year Standard, 10 year Optional5 Year Standard, 10 year Optional
Made in USAYesYes



Siemens Central Inverter Stations4.1MW4.3MW4.5MW4.7MW
Input (DC)
Max. array powersee Isc limit per invertersee Isc limit per invertersee Isc limit per invertersee Isc limit per inverter
Max. Voltage1500Vdc1500Vdc1500Vdc1500Vdc
MPP Voltage Range835-1300Vdc875-1300Vdc915-1300Vdc955-1300Vdc
DC PortsMax 36 Fuses + (monitored)Max 36 Fuses + (monitored)Max 36 Fuses + (monitored)Max 36 Fuses + (monitored)
Short-circuit currentup to 9000Aup to 9000Aup to 9000Aup to 9000A
MPP trackers / strings per MPP input1111
Output (AC)
Nominal output power4095KVA @ 40C4299KVA @ 40C4504KVA @ 40C4709KVA @ 40C
Output Power at 50C3790KVA3979KVA4169\KVA4358KVA
Nominal AC voltage600Vac630Vac660Vac690Vac
AC voltage range+/- 10%+/- 10%+/- 10%+/- 10%
Max output current3940A rms3940A rms3940A rms3940A rms
Rated grid frequency / range57-63Hz57-63Hz57-63Hz57-63Hz
Power factor0.0 ind. - 0.0 cap.0.0 ind. - 0.0 cap.0.0 ind. - 0.0 cap.0.0 ind. - 0.0 cap.
Total harmonic distortion<1%<1%<1%<1%
Efficiency
Max Efficiency99.45%99.45%99.45%99.45%
CEC Efficiency99.02%99.07%99.11%99.14%
Standby Consumption<200W<200W<200W<200W
Protection / safety features
CommunicationModbus TCP/IPModbus TCP/IPModbus TCP/IPModbus TCP/IP
Q at NightYesYesYesYes
DC Connection per inverterTwo hole lugs for up to 750MCM cable pairs (max 36 pairs)Two hole lugs for up to 750MCM cable pairs (max 36 pairs)Two hole lugs for up to 750MCM cable pairs (max 36 pairs)Two hole lugs for up to 750MCM cable pairs (max 36 pairs)
AC Connection per inverterBusbar Throat to TransformerBusbar Throat to TransformerBusbar Throat to TransformerBusbar Throat to Transformer
AC DisconnectVia Panelboard BreakerVia Panelboard BreakerVia Panelboard BreakerVia Panelboard Breaker
CertificationUL1741 SA/SBUL1741 SA/SBUL1741 SA/SBUL1741 SA/SB
Audible Noise<80dB @ 1m<80dB @ 1m<80dB @ 1m<80dB @ 1m
Weight (each inverter)4045kg / 8918lb4045kg / 8918lb4045kg / 8918lb4045kg / 8918lb
Warranty5 year5 year5 year5 year
Transformer Options34.5KV / 15KV class / others on request34.5KV / 15KV class / others on request34.5KV / 15KV class / others on request34.5KV / 15KV class / others on request
Solis logo updated

solis s6

The S6 High Voltage Home Hybrid (3.8-11.4kW) features generator connectivity, an integrated bypass and the ability to power some loads while PV producing-even without a battery! This versatile and scalable solution operates on an open ecosystem, meaning works with many battery, racking, optimization and shutdown options.

UL 3741 listings? Yes! Listed with IronRidge, Chiko Solar, Ecofasten and Pegasus

High Voltage Home Hybrid3.8, 5, 7.6, 9.9, 10, 11.4kW Class
Input (DC)
Max. array power3.8-11.4kW
Max. Voltage600V
Voltage range80-520V
Minimum DC voltage / start voltage80V
Short-circuit current25.6A
MPP trackers / strings per MPP input2-4/1
Output (AC)
Nominal output power3.8-11.4
Max power3.8-11.4kW
Nominal AC voltage240V
AC voltage range211-264V
Max output current15.8-47.5A
Rated grid frequency / range55-60Hz
Power factor> 0.99 (0.8 leading - 0.8 lagging)
Total harmonic distortion<3%
Efficiency
Max Efficiency97-97.6%
CEC Efficiency97%
Protection / safety features
Ground fault detectionYes
Residual (leakage) current detectionYes
Integrated AFCIYes
DC reverse-polarity protectionYes (PV Only)
Manual inverter bypass switchYes
Rapid shutdown NEC 2017Integrated SunSpec-certified Transmitter
Compatible RSD receiversSee Master Compatibility Sheet
Protection class / Over voltage categoryI/II

Solis 1P grid-tied

The Solis Grid-Tied 1P Series has been in the field since 2011. This proven, grid-tied solution is cost effective and can be AC coupled to any whole home battery system.

UL 3741 listings? Yes! Listed with IronRidge, Chiko Solar, Ecofasten and Pegasus

1P Grid-Tied Residential Series3.6, 5, 6, 7.5, 7.6, 10kW Class
Input (DC)
Max. array power3.6-10kW
Max. Voltage600V
Voltage range100-500V
Minimum DC voltage / start voltage120V
Short-circuit current22A
MPP trackers / strings per MPP input3-4/3-4
Output (AC)
Nominal output power3.6-10
Max power3.6-10
Nominal AC voltage208/240
AC voltage range208/240
Max output current43.3A/41.7A
Rated grid frequency / range60Hz
Power factor> 0.99 (0.8 leading - 0.8 lagging
Total harmonic distortion<3%
Efficiency
Max Efficiency97.8%
CEC Efficiency97.5%
Protection / safety features
DC reverse-polarity protectionYes
Ground fault monitoringYes
Anti-islanding protectionYes
Integrated AFCIYes
Integrated DC switchYes
Multi peak scanYes
Rapid shutdownBuilt-In APS or Tigo Transmitter
Surge protectionDC Type III / AC Type III
Compliant MLRSD productsTS4-A-F/2F/O, APSmart RSD-S/RSD-D

solis 30 kw

The S6 1000V 25-60kW Series features fuse-free design, intelligent string-level monitoring, separable wiring box and integrated AC/DC disconnects reduce and streamline operations and maintenance. Zero export options, derating and shade covers are also available, enhancing overall system flexibility. This family of products also includes a 208/240 V High Leg Delta 30kW option.

UL 3741 listings? Yes! Listed with IronRidge, Schletter, Panelclaw, Aerocompact, Unirac, Sollega, Sunmodo

S6 1000V 25-60kW Series 30 LV, 25, 33, 36, 40, 50, 60 kW
Input (DC)
Max. array power25-60kW
Max. Voltage1000V
Voltage range180-1000V
Minimum DC voltage / start voltage180V
Short-circuit current63A
MPP trackers / strings per MPP input3/6; 4/8
Output (AC)
Nominal output power25-60kW
Max power25-60kW
Nominal AC voltage280/240(30kW) 480V
AC voltage range280/240(30kW) 480V
Max output current30.1A-72.2A
Rated grid frequency / range55-60Hz
Power factor> 0.99 (0.8 leading - 0.8 lagging
Total harmonic distortion<3%
Efficiency
Max Efficiency98.8%
CEC Efficiency98.3%
Protection / safety features
Integrated AC/DC SwitchYes
DC Reverse-Polarity ProtectionYes
Short Circuit ProtectionYes
Output overcurrent protectionYes
Surge protectionDC Type II/AC Type II
Grid monitoring & anti-islanding protectionYes
String-level monitoring with IV Curve ScanningYes
Shade mitigation with multipeak scanningYes
Integrated AFCI and PID RecoveryYes

Solis s5

The S5 1000V 75-125kW Series features fuse-free design, intelligent string-level monitoring, and integrated AC/DC disconnects reduce and streamline operations and maintenance. With the capability to oversize systems up to 200%, multiple MPPTs and derating there is unlimited flexibility. Zero export options and shade covers are also available. This family of products also includes a 208/240 V High Leg Delta 60kW option.

UL 3741 listings? Yes! Listed with IronRidge, Schletter, Panelclaw, Aerocompact, Unirac, Sollega, Sunmodo

S5 1000V 75-125kW Series 60 LV, 75, 80, 90, 100, 125 kW
Input (DC)
Max. array power75-125kW
Max. Voltage1000V
Voltage range180-1000V
Minimum DC voltage / start voltage195V
Short-circuit current50A
MPP trackers / strings per MPP input8/16; 9/18; 10/20
Output (AC)
Nominal output power60, 75-125kW
Max power60, 75-125kW
Nominal AC voltage280/240(60kW) 480V
AC voltage range280/240(60kW) 480V
Max output current90.2-150.4A
Rated grid frequency / range60Hz
Power factor> 0.99 (0.8 leading - 0.8 lagging
Total harmonic distortion<3%
Efficiency
Max Efficiency98.8%
CEC Efficiency98.3%
Protection / safety features
Integrated AC Switch/DC disconnectsYes
Rapid ShutdownYes; see master compatibility sheet for information
Short Circuit ProtectionYes
Output overcurrent protectionYes
Surge protectionDC Type II/AC Type II
Grid monitoring & anti-islanding protectionYes
String-level monitoring with IV Curve ScanningYes
Shade mitigation with multipeak scanningYes
Integrated AFCI and PID RecoveryYes

Solis-(125-255)

The Solis three phase 125-255kW has been long deployed in the field and has high-rated DC inputs that support "Y" type connection in DC side, up to 30A per DC input. Maximum string input current rating 15A, supporting today’s bifacial modules.  Anti-PID function integrated to deter from module degradation. Site performance is easily optimized with direct MC4 connections and in-field string combining. With both a 600 and 800 V option and AFCI integrated, you can support an array of new and existing sites.



Solis 125-255kW 1500V DC Plus Series125, 185, 255 kW
Input (DC)
Max. array power125-255kW
Max. Voltage1500V
Voltage range480-1500V
Minimum DC voltage / start voltage500V
Short-circuit current50A
MPP trackers / strings per MPP input9/18; 12/24
Output (AC)
Nominal output power125-255kW
Max power125-255kW
Nominal AC voltage600; 800V
AC voltage range600; 800V
Max output current132.3, 178, 184A
Rated grid frequency / range60Hz
Power factor> 0.99 (0.8 leading - 0.8 lagging
Total harmonic distortion<3%
Efficiency
Max Efficiency98.6%, 98.7%, 99%
CEC Efficiency98.3%
Protection / safety features
DC reverse polarity protectionYes
Ground fault monitoringYes
Short Circuit ProtectionYes
Surge protectionDC Type II/AC Type II
Grid monitoring & anti-islanding protectionYes
String-level monitoring with IV Curve ScanningYes
Shade mitigation with multipeak scanningYes
Integrated AFCI and PID RecoveryYes

Solis S6-GU350K

Solis' largest three-phase, 1500 VDC PV string inverter has 12 MPPT (250, 300 and 350) or 16 independent MPPTs (350K) options that allow for great redundancy in larger systems. Redundancy through a distributed method supports overall system uptime. With the high current rated DC inputs, systems can realize full capacity as well of their PV modules. Solis’ system supports ease of installation with MC4 connectors, while maintenance is streamlined with SolisCloud and advanced, remote monitoring. Solis’ fuse-free design supports long-term reliability, further enhancing the overall return on investment for large systems.Not many products this size have the wide array of voltage options and already integrated AFCI, making this a great , versatile solution for large-scale projects.



S6 250-350kW 1500V DC Series250, 300, 350 kW
Input (DC)
Max. array power250-350kW
Max. Voltage1500V
Voltage range480-1500V
Minimum DC voltage / start voltage500V
Short-circuit current70A/60A
MPP trackers / strings per MPP input12/12; 16/16
Output (AC)
Nominal output power250-350kW
Max power250-350kW
Nominal AC voltage600; 690; 800V
AC voltage range600; 690; 800V
Max output current240.6; 251.0; 252.6 A
Rated grid frequency / range60Hz
Power factor> 0.99 (0.8 leading - 0.8 lagging
Total harmonic distortion<3%
Efficiency
Max Efficiency99%
CEC Efficiency98.5%
Protection / safety features
DC reverse polarity protectionYes
Ground fault monitoringYes
Short Circuit ProtectionYes
Surge protectionDC Type II/AC Type II
Grid monitoring & anti-islanding protectionYes
String-level monitoring with IV Curve ScanningYes
Shade mitigation with multipeak scanningYes
Integrated AFCI and PID RecoveryYes
Optional Skid Solution and AC combiner systemsYes

WIFICellular Stick

Size / category: Residential and Commercial Inverter Wi-Fi / Cellular Data Logging Device

The best “combination” Wi-Fi / Cellular data logging communication device on the market.  NEMA 3R, plug-and-play connection to the Solis inverter external comm port.  Powers up and begins broadcasting with 2 minutes.  Default Wi-Fi to the local router.  However, if the router fails, within 2 minutes, the W4G “stick” finds the nearest GSM or LTE cellular tower.  No breaks in data, ever.  Physical reset button and three (3) LEDs on the front tell the installer what the device is doing.  The Solis Wi-Fi / Cellular “stick” is a data logging communication tool that can broadcast data from as many as ten (10) Solis residential or commercial PV string inverters daisy-chained with Solis cords or CAT5e cable.  The S1-W4G-ST is also a great troubleshooting tool.  Using the S1-W4G-ST, an installer can connect any Solis inverter to the nearest cell phone tower and see if the inverter is broadcasting data to the Cloud.

  • Touch-safe, plug-and-play installation with no configuration of the device
  • Easy Wi-Fi connection to the local router using the installer’s own cell phone
  • NEMA 4X, installed under the inverter for all-weather performance
  • Each Solis data logging device can broadcast data from as many as 10 inverters
  • Small, rugged and easy to carry, the Solis Wi-Fi / Cellular data logging device can be a handy trouble-shooting tool

Solis website | Solis Inverter On-Demand Webinar


sol-ark-logo

sol-ark

Sol-Ark’s 15K-2P (UL# Limitless 15K-LV) is so powerful that it eliminates standby generators, a 200A whole home transfer switch (built in), UPS’s for electronics due to 5ms switching, Neutral Forming Transformer due to split phase output, and parallel stacking because only one is needed. Sol-Ark also sells smaller units (12K-2P, 8K-2P, 5K-1P) for critical loads, off grid, and mobile applications. Features and benefits include parallel stacking, grid sell, meter zero, time of use, smart load, generators, simultaneous AC & DC Coupling, & peak shaving. The company has partnered with many battery companies like HomeGrid, Endure, SimpliPhi, Fortress, Blue Ion, Storz Power, PowerSync, and Discover to advance inverter and battery control through extensive communications.

  • 20 kW pk power
  • 4ms UPS Transfer times,
  • Generator support,
  • 93% Round Trip Efficiency

Sol-ark 15K

The Sol-Ark 15K-2P Whole Home hybrid inverter is the most powerful and versatile residential energy storage solution available today. Designed and engineered for complete whole-home backup, it seamlessly integrates with solar, batteries, generators, and electric vehicles, ensuring energy independence and cost savings. With NEM 3.0 readiness, this system optimizes home energy use during peak hours, reducing electricity costs through advanced Time-of-Use (TOU) management.

The 15K-2P inverter has Grid Down Generation for uninterrupted power, and the DC-to-DC architecture enhances battery efficiency and longevity, while military-grade reliability protects against lightning and electromagnetic threats. Featuring EV home charging, 275A battery charging, and UL 9540-certified battery compatibility, the 15K-2P is virtual power plant-ready with rapid 5ms transfer time.

Designed for flexibility and resilience, the Sol-Ark® 15K-2P is the ultimate choice for homeowners looking to reduce energy costs, enhance security, and stay powered - no matter what.



Sol-Ark 15K-2P Whole Home15 kW Class
Input (DC)
Max. array power19,500W
Max. Voltage500V
Voltage range150-500V
Minimum DC voltage / start voltage125V
Short-circuit current44A
MPP trackers / strings per MPP input3 MPPTs / 2 Strings Ea
Output (AC)
Nominal output power15,000W
Max power24,000VA
Nominal AC voltage120/240V, 120/208V, 220V
AC voltage range120/240V, 120/208V, 220V
Max output current63A
Rated grid frequency / range50/60Hz
Power factor+/- 0.9 adjustable
Total harmonic distortion<3%
Efficiency
Max Efficiency97.5%
CEC Efficiency96.5%
Protection / safety features
List all that applyUL1741-2010/2018, IEEE1547a 2003/2014,

FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H

 PV DC Disconnect Switch — NEC 240.15 Integrated

Ground Fault Detection — NEC 690.5 Integrated

PV Rapid Shutdown Control — NEC 690.12 Integrated

PV Arc Fault Detection — NEC 690.11 Integrated

PV Input Lightning Protection Integrated

PV String Input Reverse Polarity Protection Integrated

AC Output Breaker - 200A Integrated

Surge Protection DC Type II / AC Type II

Sol-ark 60K

The Sol-Ark 60K-3P-480V Commercial Hybrid Inverter is a powerful, scalable energy storage solution designed for large commercial and industrial applications. This high-performance inverter helps businesses reduce peak demand charges, optimize solar energy usage, and participate in grid services programs for additional revenue. All backed by Sol-Ark’s 10-year warranty.

Designed for seamless integration, it features native 277/480V 3-phase output, AC & DC coupling, and a modular design scalable from 40kWh to 9.6MWh. Businesses can parallel up to 10 inverters and 16 batteries per inverter, ensuring future energy expansion. With built-in MPPT, grid switchgear, generator switchgear, and an advanced energy management system (EMS), the 60K-3P-480V delivers unmatched efficiency, simplifying installation and reducing costs.

5ms transfer time, 200A grid pass-through, and seamless backup power ensure uninterrupted operations, even during outages. For businesses seeking energy independence, resilience, and cost savings, the Sol-Ark® 60K-3P-480V is the ultimate solution.

Sol-Ark 60K-3P-480V60 kW Class
Input (DC)
Max. array power78,000W
Max. Voltage1,000V
Voltage range150-850V
Minimum DC voltage / start voltage180V
Short-circuit current55A
MPP trackers / strings per MPP input4 MPPTs / 2 Strings Ea
Output (AC)
Nominal output power60,000W
Max power90,000VA
Nominal AC voltage277/480V
AC voltage range277/480V
Max output current72.3A
Rated grid frequency / range50/60Hz
Power factor+/- 0.8 adjustable
Total harmonic distortion<3%
Efficiency
Max Efficiency97.5%
CEC Efficiency96.5%
Protection / safety features
List all that applyL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16,

IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0),

UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP

 PV DC Disconnect Switch — NEC 240.15 Integrated

Ground Fault Detection — NEC 690.5 Integrated

PV Rapid Shutdown Control — NEC 690.12 Integrated

PV Arc Fault Detection — NEC 690.11 Integrated

PV Input Lightning Protection Integrated

PV String Input Reverse Polarity Protection Integrated

Surge Protection DC Type II / AC Type III

  • Distributors: CED Greentech, Soligent, City Electric Supply, AEE, Krannich, Beacon, The PowerStore, GenPro energy solutions, Zonna Energy, Inter-Island, R&R, BayWa, AltE store, Northern Arizona Wind & Sun, Renvu, Multi Batteries, Warren, HES, Sentinel, Solar Solutions, & more
  • www.sol-ark.com

SolarEdge logo

solaredge Terramax inverter

The new SolarEdge TerraMax 330kW Inverter is designed to maximize energy production for any project terrain and for overcoming challenges posed by shading and uneven terrain on community solar ground mount sites. In addition, it is the ideal product for agri-PV, small-medium utility-scale projects and floating PV. It delivers more energy with 200% DC oversizing for up to 50% less Balance of System (BoS) costs (Based on comparisons using HelioScope on 8MW projects and typical string inverters. Numbers can change based on project characteristics).

In terms of power, this inverter helps ensure continual peak performance with an integrated PID (Potential Induced Degradation) rectifier and boosts energy yield through DC-optimized technology with multiple MPPTs.

To save on BoS costs, the inverter works with fewer and longer strings on up to 80 modules, and further streamlines by providing higher power through fewer units. The SolarEdge TerraMax inverter also speeds up onsite work with a topology feature that places the inverter in a central location alongside distributed, multiple MPPTs in the array. These factors can reduce labor, installation time and material cost with virtual central topology and single DC input architecture.

Finally, the TerraMax Inverter also simplifies operations & maintenance, reducing unnecessary truck rolls with granular, module-level monitoring, and reducing schedule risks and maximizing system uptime with automatic alerts and remote troubleshooting capabilities.

Key specs:

  • kW range: 330kW
  • Operating voltage range: 587-759 Vac
  • of MPPTs / MPPT voltage range: 12.5-105 Vdc
  • Max / CEC efficiency: 2/99.0%

UL listings: UL 1741, UL 1998, UL 1741SA, UL 1741SB

SolarEdge H1300 Power Optimizer

Supporting high power 650W modules, SolarEdge H1300 Power Optimizers enable modules in the array to work independently. The underperformance of one module will not affect others in the string, eliminating mismatch-related power losses due to shading, soiling, or aging, enabling higher overall energy production.

The H1300 also helps to harvest more energy from bifacial modules by mitigating electrical losses caused by the varying ground albedo, shading, obstructions, or other rear-side factors. Further, inter-row shading losses are minimized with module level MPPT. Plus, up to 80-module string length is supported, resulting in fewer strings and enabling up to 50% BoS savings when compared to traditional string solutions.

Additionally, the H1300 helps keep production rolling with granular and continuous module-level data monitoring for EPCs and O&M personnel. It tracks system performance and helps to pinpoint & resolve issues remote or onsite using our Monitoring Platform.

SolarEdge-Energy-Bank-Battery-SolarEdege-Energy-Hub-Inverter-FINAL

The SolarEdge Home Hub inverter’s industry leading 99% weighted efficiency paired with its ability to DC oversize up to 200% allows installers to install more power, increase system ROI, and better meet the increasing energy needs of their customers. Additionally, the DC-coupled Home battery offers installers the ability to install the inverter, battery, and EV charger on a single breaker which enables faster installation both at the time of install, as well as with future additions, with fewer main panel upgrades. DC coupling allows for inverter, battery, and EV charger to be installed on one breaker, resulting in fewer main panel upgrades, and lower installation costs. All of this paired with a standard warranty of 12 years extendable to 25 years, integrated arc fault protection, and in app features such as Weather Guard, enables installers to offer their customers increased peace of mind and reliability.

  • 99% weighted efficiency, 94.5% round trip efficiency with SolarEdge Home Battery.
  • 3.8 kW to 11.4 kW range with up to 200% DC oversizing allowed
  • 3.8kW inverter can support up to 11.4 kW when off-grid
  • NEMA 4X and UL1741SA certified

solaredge 120K_HeroShot

Reaching up to 120kW, SolarEdge’s Three-Phase Inverters with Synergy Technology are designed to provide more power and higher profitability in large-scale PV installations. Maximizing energy production with up to 175% DC oversizing, it offers improved uptime through modularity and independently working units. A pre-commissioning feature allows installers to validate system components before connecting to the grid and the built-in night-time PID rectifier helps to avoid module performance degradation. Advanced safety is offered through SolarEdge’s arc fault protection and rapid shutdown, built-in thermal sensors on the DC and AC terminal blocks, and field-replaceable surge protection devices. Pre-commissioning designed to resolve system issues before grid connection via SetApp and a USB power bank. Monitored and field-replaceable type 2 surge protection devices (SPDs). The Synergy inverter is installed in tandem with the Power Optimizer (S1200/S1201) yielding savings on eBOS and allowing for greater energy production over plant life.

 Three Phase Inverter w/ Synergy Technology Power Ratings:

  • 50kW @208V grid,
  • 80kW, 100kW, 110kW, 120kW @480V grid

Three Phase Inverter Power Ratings:

  • 10kW, 17.3kW @208V grid;
  • 30kW, 40kW @480V grid

Commercial S-Series NAM_safety

The S-Series Power optimizers feature advanced safety features such as SolarEdge Sense Connect, an industry-first technology that detects temperature increase at the connector level, stopping power flow before an arc can occur. The SolarEdge Sense Connect technology joins an expanded range of pro-active safety features, such as built-in SafeDC, and rapid shutdown. Providing 99.5% efficiency and supporting two high power, high input current PV modules, the S-Series helps lower Levelized Cost of Energy thanks to higher yield and enables longer and more powerful strings.

Commercial S-Series Power Optimizers:

  • S1200: used for ground mount and carport applications, supporting PV panels up to 600Wp, Isc 15A
  • S1201: used for rooftop applications, supporting PV panels up to 600Wp, Isc 15A

Residential S-Series Power Optimizers

  • S440: supporting PV panels up to 440Wp, Isc 14.5A, 60V
  • S500: supporting PV panels up to 500Wp, Isc 15A, 60V
  • S500B: supporting high voltage panels with 500Wp input power, Isc 15A, and input voltage of 125V
  • S650B: supporting high voltage modules with 650Wp input power, Isc 15A, and input voltage of 85V.

Sungrow inverters

SG36_60CX

6 MPPTs make designing with the SG60CX flexible, simple, and quick. Our MC4 connections enable safe and reliable PV inputs, ideal for any installation setting. Integrated AC and DC disconnects makes working with this unit convenient and safe.

UL 3741 listings?

  • Ironridge -BX line
  • Unirac – Ecofoot2+, Ecofoot 5D, GridFlex10, GridFlex5, NXT Umount, RM10 (Evo) RM5, RMDT, Solarmount
  • Panelclaw-ClawFR
  • Aerocompact-CompactFLATs, Compact FLATsn
  • Sollega – Fastrack510
  • Sunmodo – Nanorack, SMR Pitched Roof,
  • Schletter – FixGridPro
  • Opsun Systems - Sunrail

Fill in all specs. You can adjust wording to better suit your descriptions and create additional columns if multiple power classes of the same inverter line have different specs.

SG60CX
Input (DC)
Max. array power110kW @710VDC
Max. Voltage1000VDC
Voltage range (MPPT operating range)200 V – 1000 V
Minimum DC voltage / start voltage200V
Short-circuit current45A per MPPT
MPP trackers / strings per MPP input6 / 2
Output (AC)
Nominal output power60kW
Max power60kVA
Nominal AC voltage480V
AC voltage range422 V – 528 V
Max output current72.2 A
Rated grid frequency / range60 Hz / 55 Hz – 65 Hz
Power factor> 0.99 / 0.8 leading – 0.8 lagging
Total harmonic distortion< 3 % ( at nominal power )
Efficiency
Max Efficiency98.60 %
CEC Efficiency98.00%
Protection / safety features
List all that apply
DC reverse polarity protection

AC short circuit protection

Leakage current protection

Grid monitoring

DC switch

AC switch

PV string monitoring

Arc fault circuit interrupter ( AFCI )

PID Recovery function

Overvoltage protection



Tigo logo green

TIGO EI INVERTER - US

The hybrid architecture of the EI Inverter delivers a wider operating voltage range, enabling energy production earlier in the morning and later into the evening. The EI Batteries are charged directly by DC (direct current) electricity and take advantage of the inverter’s 2:1 DC oversizing ratio to charge the batteries with additional power that would otherwise be lost. For grid-tied systems, the Tigo ATS senses grid loss and automatically switches between grid-tied solar, islanding with solar-plus-storage, or battery-only, as needed. With Tigo Flex MLPE devices, installations benefit from module-level monitoring and advanced rapid shutdown safety measures to protect solar professionals, building maintenance personnel, and first responders. Tigo is committed to serving its installers by providing in-depth training and support resources for system design, installation, and monitoring.



Tigo Energy EI Inverter11.4 kW Class3.8 kW Class7.6 kW Class
Input (DC)
Max. array power22800 W7600 W15200 W
Max. Voltage600 V600 V600 V
Voltage range220 V~500 V150 ~ 500 V200 ~ 500 V
Minimum DC voltage / start voltage400 V400 V400 V
Short-circuit current
MPP trackers / strings per MPP input423
Output (AC)
Nominal output power9880 W/ 11400 W3920 W/ 3980 W6580 W / 7600 W
Max power11400 VA3800 VA7600 VA
Nominal AC voltage 208 V/240 V208 V/240 V208 V/240 V
AC voltage range
Max output current48 A16 A32 A
Rated grid frequency / range50/60 Hz50/60 Hz50/60 Hz
Power factor>0.99>0.99>0.99
Total harmonic distortion<3%<3%<3%
Efficiency
Max Efficiency98.5%98%98.4%
CEC Efficiency98.0% / 97.5%97% / 97%97.5% / 97%
Protection / safety features
DC reverse polarity

DC disconnect switch

DC surge - Type II

Insulation resistance monitoring

AC surge - Type III

AC short-circuit

Ground fault monitoring

Grid monitoring Anti-islanding Residual-current monitoring unit

AFCI Protection

PVRSS rapid shutdown with TS4-A-F/2F, TS4-A-O/S

Module-level monitoring with TS4-A-O/M/S


Tags: , , , , , , , , , , , , , , , ,

Comments are closed here.
