Energy Storage System Buyer’s Guide 2025

Energy Storage System ESS Buyer's Guide 2025

Energy storage systems (ESS) might all look the same in product photos, but there are many points of differentiation. What power, capacity, system smarts actually sit under those enclosures? And how many of those components actually comprise each system? The number of options – from specialized component providers to all-encompassing ESS + smart circuit functionality – is unwieldy and often hard to pin down. The 2025 Solar Builder Energy Storage System Buyer’s Guide is here to cut through the noise.

This ESS Buyer’s Guide is a comprehensive list of what each brand is offering in the residential and C&I space heading into 2025. We sent a questionnaire to every manufacturer to ascertain their top product and what components are included. Is it a hybrid inverter with a roster of battery partners? Is the battery included? What about the energy management or smart circuits?

Below are all of the answers we received. They are listed in alphabetical order. To improve readability a bit we divided them into groups:

  • Hybrid inverters and smart panels
  • Full ESS w/ battery
  • Batteries and BMS
  • C&I size systems

A big focus this year was also UL 9540 certification. We asked if each product was listed to UL 9540, and for a link to the certification documentation. Not many provided the link, but some did – look for that in the tables.

What is UL 9540?

As part of our 2025 Energy Storage System Buyer’s Guide, we asked manufacturers to explain 9540A testing, and what installers should keep in mind when installing ESS and batteries listed to UL 9540. The UL 9540 certification focuses on the safety and performance of energy storage systems (ESS) and their components. The UL 9540 certification and 9540A test results are very often used in conjunction to show the safety and efficacy of battery storage. UL 9540A testing evaluates the risk of fire propagation in energy storage systems by determining if a thermal event in one battery module can spread to others.

Test results “guide the need for safety measures like fire barriers, ventilation systems to handle gases or heat, fire suppression systems for larger installations, and recommended spacing between battery units or nearby structures to reduce fire risk,” says Jon Proffitt, Head of Business Development, Home Solutions SMA America.

“Some ESS systems have location restrictions, requiring outdoor installation or fire-rated enclosures. In some cases, batteries must also be protected from direct impact with the use of specific mounting or enclosures. In other cases, systems may include monitoring or shutdown mitigation such as self-activated fire extinguishers, and installers must follow installation and commissioning guidelines.”

“Under UL 9540, Ed 3, the 9540A testing is a requirement, along with more stringent testing for communicating batteries and seismic,” says Sequoya Cross, VP Energy Storage, Briggs & Stratton Energy Solutions. “All batteries that want to achieve UL 9540 will need to complete the module level testing. Unit level testing is an additional step to advise on spacing and install location.”

“The intent of this test is to prove that within a system as installed there is no risk of propagation from battery to battery, and that the surface temperature of what the unit is installed on does not exceed 175°F,” Cross says. “Additionally, there cannot be any explosion hazards or flaming beyond the outer dimensions of the BESS unit. If the unit meets all of these requirements, no further testing is required.”

Beyond cell, module and unit level tests, manufacturers can conduct system level testing that incorporates fire suppression mechanisms to prevent flaming outside of the test area and explosion risks. Once the tests are concluded a report is generated on the results and delivered to the manufacturer and NRTL. These tests are evaluated for the UL 9540 certification.

Why UL 9540 matters

“UL listing simplifies several steps in the process. It tells installers the system meets a minimum standard in the industry, streamlines the project acceptance process, and eliminates the need for field testing of components,” says Rich Law, Sr. Engineer – ESS Technical Solutions (CCI), Sungrow. “When the latest UL9540 standards and UL9540A test results are conducted by a certified third-party tester and successfully passed, it provides the installer confidence the system was designed by the OEM to meet quality and safety standards widely utilized by the energy storage industry.”

What should installers keep in mind when looking at UL 9540 certification and 9540A testing results?

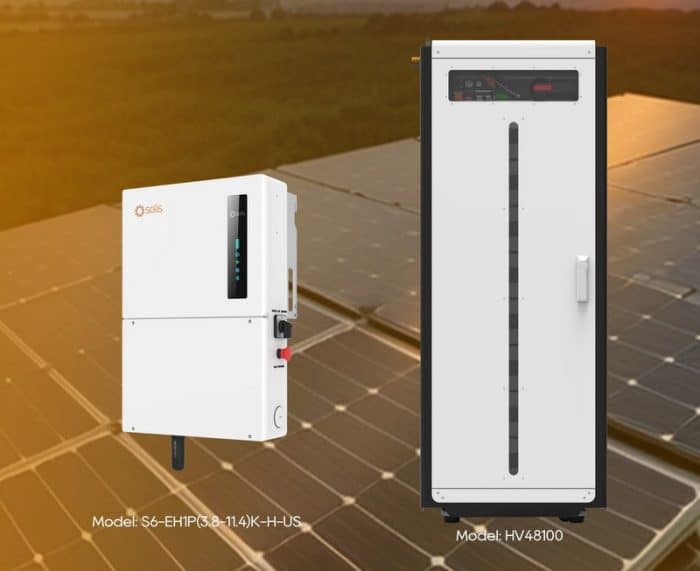

Eli Chu, Product Manager from Pytes Energy says installers should focus on:

Gas Release Data: Review any information on hazardous gas emissions during a thermal runaway event. Understand the gases that may be released and their potential hazards. Ensure the installation design includes adequate ventilation to mitigate the risk of gas emissions and/or buildup.

Minimum Spacing: Review specific recommendations for minimum clearances required between ESS units and walls or between multiple ESS units to prevent fire spreading. Installers should ensure these recommendations are followed to mitigate the potential for thermal runaway propagation within a system.

The NFPA 855 gives the standard as 3ft in separation distance, but if the battery is properly tested, the manufacturer can specify shorter distances.

“If a battery doesn’t need less than 3 feet of separation between each 20 kWh unit, or is installed outdoors, the additional testing is compulsory,” Cross says. “However, most battery companies want to go through this extra step to provide the most flexibility of their products for installers.”

The certification is also inclusive of the installation manual and requires that installers follow the instructions in order to achieve a UL 9540 certified installation. “Additionally, AHJ’s may have different requirements based on their building and fire codes that may limit or allow different installations beyond what UL 9540 and the install manual state due to building density, construction and fire risk,” Cross says.

AC and DC ESS: Under UL 9540, Ed. 3 there is also modification for battery systems to have AC or DC ESS certification. An AC ESS is inclusive of named/specific inverters. For DC ESS, the battery does not rely on the inverter to perform safety functions under UL 9540A, and that it can stand alone to perform all of the requirements. This allows the DC ESS to be installed with any inverter that has met its own safety certifications such as UL 1741.”

Regarding installation guidance for UL listed batteries, Jane Curtis, CEO of Renon Power says there may be the following differences:

  • Detailed Installation Instructions: UL certified batteries typically come with detailed installation instructions, including the necessary tools and steps. These instructions help ensure that each step of the installation process meets safety and performance standards.
  • Specific Environmental Requirements: There may be specific requirements for the installation environment, such as temperature range, humidity control, and fire protection measures.
  • Testing and Verification Steps: Specific testing and verification may be required after installation to ensure the safety and functionality of the system.
  • Maintenance Guidelines: Detailed maintenance and inspection guidelines help installers and users maintain the long-term safety and reliability of the system.

Discerning between UL listed 9540 batteries and unlisted, illegal batteries, is of utmost importance in the market in 2025. If you want to know why we focused so much on 9540, be sure to listen to our recent Solar Builder Buzz podcast.

Full ESS w/ battery

EG4 | PowerPro 18kPV & WallMount All Weather ESS

EG4

System components

  • The EG4 18kPV hybrid inverter – EMP-hardened solution that supports grid-tied, grid-assist, and off-grid modes. With an 18kW PV input and 12kW AC output, it manages large energy loads and is expandable, up to ten units. Featuring a 600V DC input and three MPPTs. Compatible with 48V EG4 or other batteries.

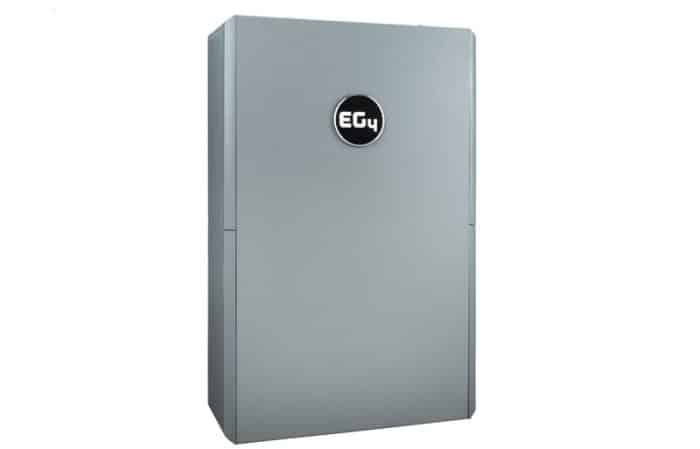

  • WallMount All Weather battery – Can perform in outdoor conditions and offers 14.3 kWh storage with 200A max discharge. It is EMP-hardened, self-heating, and has an 8000-cycle lifespan at 80% depth of discharge, delivering 82.6MWh. Pairs seamlessly with EG4 inverters like the 18kPV, 12kPV and soon to be released FlexBOSS21.

Key features: The WallMount All Weather battery includes weather-tight quick connects, 600A internal busbars, and E-Stop for emergency shutdown. Dual fire arrestors provide thermal runway protection, and the LCD touchscreen simplifies monitoring. The system’s Weather Optimization Mode can automatically charge the battery based on local weather forecasts, helping to prevent power loss during inclement conditions. By sourcing batteries separately, users can expand their energy storage capacity as needed without overhauling the entire system. This scalability makes it an ideal solution for both residential and light commercial applications, future-proofing investment and enabling smart energy management.

Operating modes: Battery Backup Mode, Working Mode, Weather Optimization Mode. For larger systems, Parallel Sync allows users to monitor multiple inverters on a single screen, ensuring real-time oversight and efficiency.

Where can it be installed: Suitable for both indoor and outdoor environments.

Battery integrated or sourced separately? The batteries can be sourced separately, but the system was designed with EG4’s PowerPro WallMount All Weather 280Ah batteries in mind to ensure seamless integration and performance.

Battery partnerships: The18kPV inverter is also compatible with batteries from other manufacturers with ongoing updates to ensure compatibility. This extensive battery compatibility allows users to customize their energy storage system to meet specific needs, ensuring efficient and reliable performance across various applications.

Where to buy: Signature Solar, Current Connected, Greentech Renewables, Off-Grid Distribution, Off-Grid Depot, ABC Supply Co., Shop Solarkits, Canadian Off Grid Depot, Zonna Energy

ESS SpecsFull spec sheet
AC and/or DC coupled?DC coupled
Voltage range
Roundtrip Efficiency94.5
Max power
Continuous power
Operating temp.-25 to +60°C, >45°C derating
Battery input voltage51.2V
Is separate critical load panel needed?No (optional)
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?GridBOSS
No. of smart circuitsFour (4) programmable AC Couple or Smart Ports
EV charger input / amp rating
Generator input?Yes
Listed as a PCS?No

Hybrid Inverter
Rated output power@240VAC 12000W | @208VAC 10400W
Max PV input (oversize %)21kW (17%)
MPPTs / strings per MPPTMPPT 1 (2) | MPPT 2 (1) | MPPT 3 (1)
Efficiency: Max / CECMaximum Efficiency (PV to GRID) 97.5%; CEC 96.9%
Battery input voltage range40-60 VDC
Output overcurrent protectionYes
Max. charge current / discharge current250A

All system certificationsUL1741SB Rule 21, RSD NEC 2020:690.12, AFCI NEC 2020:690.11 / UL1699B, GFDI NEC 2020:690.41 (B), CSA 22.2.107.1, CSA 22.2.330, UL9540, IP65/NEMA4X
Wallmount All Weather batteryFull Spec sheet
Battery brand / OEMEG4 Electronics
Battery typeLithium iron phosphate (LiFePO4)
CouplingDC
Capacity (module / cabinet)14.3kWh
Power280Ah
Charge: continuous / peak200A Max. Continuous
Discharge: continuous / peak200A Max. Continuous
Max surge rate300A for 3 seconds
Load start capability (LRA)
ESS / Inverters with closed loop commsEG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
Have you completed 9540A testing?Yes
Is it LISTED to UL 9540?Yes. Certification.

All certificationsUL1973, UL9540A
Warranty (years / cycles)10 Year Warranty, >8000 Cycles @ 80% DOD

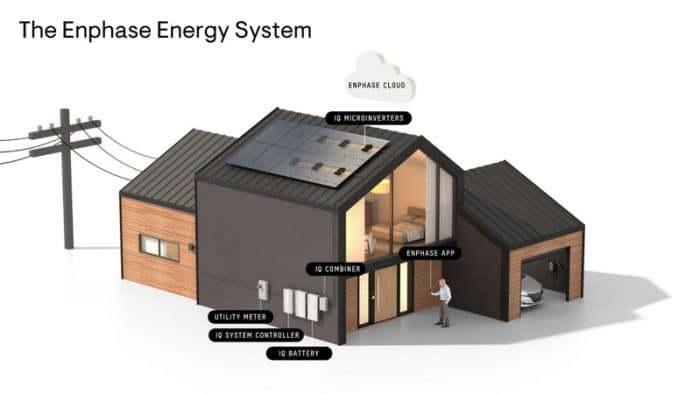

Enphase | Enphase Energy System

Enphase Energy System

System components:

  • IQ 8 Series Microinverters | Enphase’s proprietary Application Specific Integrated Circuit (ASIC) has high-speed digital logic and response times to changing loads and grid events. This ensures there are no PV to battery sizing ratios.
  • IQ Battery 5P | The IQ Battery 5P has 48 A of PowerStart capability, 7.68 kVA of peak power and 3.84 kVA of continuous power.
  • IQ System Controller 3G | The Enphase IQ System Controller 3G connects the home to grid power, IQ Batteries, AC standby Generator and solar PV with microinverters. It includes microgrid interconnection device (MID) functionality and consolidates interconnection equipment into a single enclosure. If a generator is not preferred, Enphase offers the IQ System Controller 3 variant which allows more PV or batteries to be installed instead of an AC standby generator.
  • IQ Combiner 5C | The IQ Combiner 5C connects the IQ Series Microinverters and the IQ gateway to always stay connected to the Enphase Cloud through Wi-Fi, Ethernet or cellular connections, and helps to monitor the performance of the system.

Key features: The IQ8 Microinverters, along with the IQ Battery 5P, can perform a quick system reboot even with a fully depleted battery. Once the sun starts shining again, the system is able to perform a Sunlight Jumpstart to restart the battery and restore the system’s functionality without any intervention. The system is designed with advanced grid management features that align with a utility rate structures like NEM 3.0. The Enphase Energy System uses advanced AI algorithms to maximize cost savings by storing energy when rates are low and selling energy back to the grid at peak rates, based on the homeowner’s usage patterns. Enphase’s AC coupled battery enables the system to upscale the battery and PV capacity independently. IQ Battery 5P has integrated BMS with voltage, temperature monitoring and cell balancing

Operating modes: AI Optimization Mode, Self-Consumption Mode, Full Backup Mode

Where can it be installed: The IQ Battery 5P supports indoor and outdoor installations, and they can be both wall-mounted or floor-mounted (using the IQ Pedestal)

Battery integrated or sourced separately? AC Coupled battery with DC Battery and bi-directional microinverters are sold as a single product.

Battery partnerships: DC Battery (cell pack) is designed by Enphase and is sourced from Enphase-qualified 3rd party sources.

Where to buy

Enphase IQ Battery System Specs Full spec sheets
AC and/or DC coupled?AC Coupled
Voltage range211 V to 264 V
Roundtrip Efficiency90% (AC to the battery to AC at 50% power rating)
Max power7.68 kW (3 seconds)
Continuous power3.84 kW
Operating temp.-20 to +55 C
Battery input voltageNominal 76.8 V (AC Coupled battery)
Is separate critical load panel needed?For partial home backup or if system controller cannot be installer between meter and main panel.
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuitsCan control up to 4 load circuits with IQ Load Controller
EV charger input / amp rating
Generator input?Yes
Listed as a PCS?Yes

Hybrid InverterN/A (AC Coupled Battery)
All system certificationsCA Rule 21 (UL 1741-SA), IEEE 1547:2018 (UL 1741-SB, 3rd Ed.) CAN/CSA C22.2 No. 107.1-16 UL 9540, UL 9540A, UN 38.3, UL 1998, UL 991, NEMA Type 3R, AC156 EMI: 47 CFR, Part 15, Class B, ICES 003 Cell module: UL 1973, UN 38.3 Inverters: UL 62109-1, IEC 62109-2   UL 1741, UL 1741 SA, IEEE 1547:2018 (UL 1741-SB, 3rd Ed.), UL 1741 PCS CRD, UL1 998, UL 869A, UL 5088 , UL 50E8 CSA 22.2 No. 107.1, 47 CFR Part 15 Class B, ICES 003, ICC ES AC156
Battery specs / infoFull spec sheet
Battery brand / OEMEnphase
Battery typeLithium Iron Phosphate
CouplingAC Coupled
Capacity (module / cabinet)5 kWh
Power3.84 kW
Charge: continuous / peak3.84 kVA / 7.68 kVA (3 seconds)
Discharge: continuous / peak3.84 kVA / 7.68 kVA (3 seconds)
Max surge rate7.68 kVA (3 seconds)
Load start capability (LRA)48 A
ESS / Inverters with closed loop comms  Yes
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Yes. Certificate
All certificationsCA Rule 21 (UL 1741-SA), IEEE 1547:2018 (UL 1741-SB, 3rd Ed.) CAN/CSA C22.2 No. 107.1-16 UL 9540, UL 9540A, UN 38.3, UL 1998, UL 991, NEMA Type 3R, AC156 EMI: 47 CFR, Part 15, Class B, ICES 003 Cell module: UL 1973, UN 38.3 Inverters: UL 62109-1, IEC 62109-2
Warranty 15 years / 6,000 cycles

FranklinWH | aGate & aPower2

FranklinWH agate and apower

System consists of:

  • aPower 2 | A single aPower 2 has 15 kWh capacity, 10 kW discharge rate and 8 kW charge rate. Can be stacked up to 225 kWh or 15 aPowers per aGate.
  • aGate | The aGate intelligent power controller integrates battery, solar, generator and grid power. Has enhanced black start capabilities.
  • FranklinWH App | The FranklinWH App has been enhanced with revamped visuals, a smart voice assistant for hands-free commands, and new energy data analysis.

Key features: The FranklinWH energy management system can be expanded for larger applications and is engineered to endure diverse climates. The aGate intelligently integrates and balances battery, solar, generator and grid power to provide stable energy to the home while minimizing grid charges. The FranklinWH App introduces Smart Control functions, voice commands, and energy data analysis, empowering users to optimize energy usage through customized scheduling and enhanced monitoring via Smart Circuits. aGate’s UL1741 Certified PCS function and 280 A busbar eliminate the need for Main Panel Upgrades. The aGate and app streamline installation with Bluetooth commissioning and other features to save installation time.

FranklinWH’s aPower 2 has combined high power with high reliability.  The aPower 2 can operate in a wide temperature range of -4F to 130F, making it suitable for almost any climate. With a slim profile and vertical LED status light running, the aPower 2 boasts a modern design that will fit into any home. A fan-less convection with whisper-quiet operation provides significantly quieter and more reliable battery operations. One aPower 2 can often provide complete home backup due to its robust capabilities, including a 10 kW discharge rate and 8 kW charge rate. It can be stacked for larger applications, reaching up to 225 kWh or 15 units per aGate.

Operating modes: Self-Consumption, Time of Use, Emergency Backup

Where can it be installed: Wall or floor mounted

Where to buy

ESS Specs
AC and/or DC coupled?AC-coupled
Voltage range120/240 VAC, 60 HZ; 120/208 VAC, 60 HZ
Roundtrip Efficiency90%
Max power15 kW peak for 10 seconds
Continuous power10 kW continuous
Operating temp.-4° F to 130° F (-20° C to 55° C)
Is separate critical load panel needed?No, Optional Smart Circuit panel embedded
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuits3
Generator input?200 A max
Listed as a PCS?Yes
Battery specs / info
Battery brand / OEMFranklinWH
Battery typeLFP
CouplingAC-Coupled
Capacity (module / cabinet)A Whole Integrated
Power10 kW
Charge: continuous / peak8 kW
Discharge: continuous / peak10 kW/15kW(10s)
Max surge rate10 kA
ESS / Inverters with closed loop comms  N/A
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Coming soon
All certificationsUL 9540, UL 9540A, UL 1973, UL 1741, UL1741 SB,
UL 1741 PCS, IEEE 1547, IEEE 1547.1,
UN 38.3, CSA C22.2 No. 107.1:16

Warranty (years / cycles)15 years, performance up to 10000+ cycles

Generac | PWRcell 2 Home Energy Storage System

System components:

  • PWRcell 2 Battery Cabinet: Capable of expanding from 9 – 18 kWh of storage capacity. Pair two cabinets on a single inverter for up to 36 kWh of storage capacity.
  • PWRcell 2 Inverter: With up to 11.5 kW max continuous power and 236 LRA depending on the battery configuration, the PWRcell 2 inverter has enough power for virtually any home. Paired with just one 18 kWh battery, the inverter can start up a 5-ton air conditioner without a soft-starter.
  • Smart Disconnect Switch (SDS): The Generac Smart Disconnect Switch enables system expansion to include up to 19.2 kW of PV, 23 kW of battery backup power, and 26 kW of home standby generator backup. The SDS also provides an uninterrupted power transition to battery backup, so homeowners don’t even notice when the power goes out, and their sensitive electronics stay protected.

Key features: Aside from the system’s impressive storage capacity and power output, PWRcell 2 also features advanced integrations with other Generac products, transforming system monitoring and backup capabilities and creating the ultimate home energy ecosystem. Adding a Generac home standby generator up to 26 kW can create a “bottomless battery” in case of extended outages. An integrated ecobee smart thermostat not only provides a convenient in-home display where anyone can view outage details and battery status, but it can also automatically adjust temperature set points during an outage to preserve stored energy and extend backup duration even further.

Operating modes: Self-Consumption; Backup Power

Where can it be installed: Indoors or Outdoors (in accordance to local codes and requirements)

Battery integrated or sourced separately? Integrated

ESS Specs
AC and/or DC coupled?AC Coupled (May be DC-Coupled to legacy PWRcell products)
Voltage range (Input/Output)±210 VDC (max)
Roundtrip Efficiency88%
Max. Continuous power10.5 kW (with 6 battery modules)
Operating Temperature Range (Charging)23 to 122°F (-5 to 50°C)
Operating Temperature Range (Discharging)-4 to 122°F (-20 to 50°C)
Full Performance Temperature Range (Charging)50 to 92°F (10 to 33°C)
Full Performance Temperature Range (discharging)32 to 122°F (0 to 50°C)
Is separate critical load panel needed?Varies by home
Safety CertificationsUL 9540, UL 1973, UL 9540A, UL 1998
Environmental CertificationsIEEE 693 [High], FCC Part 15 Class B
Evaluated Functions/ProtectionBattery overcharge, Battey over discharge, battery short-circuit, System overcurrent, battery temperature, cabinet switch (disconnect)
Energy / load controls
Microgrid interconnect device (MID)?Smart Disconnect Switch (SDS)
No. of smart circuitsN/A
EV charger input / amp ratingN/A
Generator input?Up to 26 kW
Max AC PV input80 A
Listed as a PCS?Yes
Battery Inverter
Rated output power11.5 kW
Peak Efficiency98.5%
Operating AC Voltage Range105 – 132 VAC
Maximum Continuous AC Current48 A
Grid CertificationsUL 1741, UL 1741 SA, UL 1741 SB, IEEE 1547, Rule 21, Rule 14H (HECO SRD V2.0), CSIP
Safety CertificationsUL 1741, UL 1998
EmissionsFCC Part 15 Class B
Battery specs / info
Battery brand / OEMDCB Battery Module – Panasonic Battery Cabinet & Battery Management Unit – Generac
Battery typeDCB Module – Lithium Nickel Manganese Cobalt (NMC)
Useable Capacity (module / cabinet)DCB Module – 3.0 kWh PWRcell 2 Battery (with 3/4/5/6 modules) – 9 kWh /12 kWh /15 kWh /18 kWh
PowerSee ESS specs above.
Have you completed 9540A testing?Yes.
Is it LISTED to UL 9540? ESS is listed.
All certificationsSee ESS specs above.
Warranty 10 years or 7.56 MWh pass-through

GM Energy | Home System with GM Energy PowerBank

GM Energy PowerBank

System components:

  • GM Energy PowerBank is a stationary energy storage system available for purchase in 10.6kWh and 17.7kWh battery capacity variants. The 17.7kWh GM Energy PowerBank can be combined to create a 35.4kWh stationary storage solution.
  • GM Energy PowerShift charger and GM Energy V2H Enablement kit, allowing customers to transfer stored energy between their applicable EV, residential home and stationary storage unit.
  • The HomeHub & Inverter – Enables the GM Energy PowerBank to capture and store energy from the grid or compatible solar panels for later use. Also unclocks bidirectional capabilities of the GM Energy PowerShift Charger.
  • The Dark Start battery
  •  Residential solar panels can also be added into the integration.

Key features: GM Energy’s offerings were created so customers could purchase select product bundles that align with their specific energy needs and budget. The system is fully complete when combined with one of GM’s seven V2H-capable EVs that can keep power on for days. Other product bundles include the GM Energy Storage Bundle, which is for customers who do not yet own a GM EV, but still want the comfort of more energy resilience. This bundle includes only the PowerBank, HomeHub and Inverter. Another bundle is the GM Energy V2H Bundle, which includes the Home Hub, PowerShift charger, Inverter and Dark Start battery.

Where can it be installed: Indoor or Outdoor on a stand and wall mount.

Battery integrated or sourced separately? Integrated in the GM Energy PowerBank, which can be combined with the battery of GM EVs.

Where to buy

ESS Specs Full spec sheets
AC and/or DC coupled?Yes
Voltage rangeCharge: 420 – 450 Vdc   Discharge: 350 – 410 Vdc
Roundtrip Efficiency97.5
Max power11 kW
Continuous powerOn-grid:  11.5 k Off-Gridd: 9.6 kW
Operating temp.59 – 86 degrees F
Battery input voltageCharge: 420-450 Vdc 350-410 Vdc
Is separate critical load panel needed?Yes (Home Hub)
Is ESS listed to UL 9540?Yes – UL9540A
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuits0
EV charger input / amp rating80-amp
Generator input?
Listed as a PCS?

Hybrid Inverter
Rated output powerOn-Grid Mode: Maximum output power at 240 ac = 11,520 W   Off-Grid Mode: Maximum output power of 9600 at
Max PV input (oversize %)480 V
MPPTs / strings per MPPT4 MPPT Inputs, 2 strings
Efficiency: Max / CEC98.0 % Peak 97.5 % at 240 Vac CEC
Battery input voltage range50 V to 480 V
Output overcurrent protectionOver voltage / Over current / Short circuit
Max. charge current / discharge current

All system certificationsUL 1741 SB, CA Rule 21, IEEE 1547, FCC part 15
Battery specs / info
Battery brand / OEMLG Energy Solution
Battery typeNMC
CouplingDC
Capacity (module / cabinet)10.6 kWh 17.7 kWh
Power10.6 17.7
Charge: continuous / peak10.6 kW = 5 kW / 7 kW peak   17.7 = 7 kW / 11 kW peak
Discharge: continuous / peak  10.6 kW = 5 kW / 7 kW peak; 17.7 kW = 7 kW / 11 kW peak
Max surge rate20 A
Load start capability (LRA)
ESS / Inverters with closed loop comms  Yes
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Yes
All certificationsUL 1973, UL 9540A, IEC 62619, FCC
Warranty (years / cycles)10 years

Fortress Power | Avalon

System components:

  • Smart Energy Panel – 14 load shedding ports because there are two dedicated specifically for the EV charger.
  • Avalon batteries- The stackable battery capacity ranges from 14.7 to 29.4 kWh, and then that’s scalable up to 176.4 kWh.
  • Hybrid Inverter

Key features: Fortress focused on higher voltage architecture, and included innovative battery temperature management. They also purpose-built the hybrid inverter and Smart Energy Panel for the system. Fortress is so confident in how the Avalon functions, that it is offering a 15-year warranty on the battery – extendable to a 25-year with replacement – if you finance the system through them. Each battery module has active heating and a fire suppression system built in. The active heating contributes to the longevity of the battery unit by wrapping the cells with a heater. Once the temperature goes below a setpoint, the heating turns on, and it uses the battery power. This expands operating temperature range.

ESS Specs Full spec sheet
AC and/or DC coupled?Either or Both
Roundtrip Efficiency97% +
Max power for 10 seconds12.2kW, 18.2kW, 24.4kW, 36.4kW, 54.6kW (depending on inverter model/quantity)
Continuous power7.6kW, 11.4kW, 15.2kW, 22.4kW, 34.2kW (depending on inverter model/quantity)
Operating temp.-4⁰F to 122⁰F
Battery input voltage48V per module
Is separate critical load panel needed?No
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?HFE65
No. of smart circuits12 (plus 2 for EV charger)
EV charger input / amp rating50A @ 240V AC
Generator input?Yes
Listed as a PCS?No

Hybrid Inverter
Rated output powerSame as the ESS
Max PV input18.2, 36.4kW, 54.6kW (depending on inverter quantity)
MPPTs / strings per MPPTFour per inverter, one string per MPPT
Efficiency: Max / CEC97.2%
Battery input voltage range135V to 315V
Output overcurrent protection40A or 60A (per inverter depending on inverter type)
Max. charge current / discharge current50A DC

All system certificationsUL 1741, UL 1741 SA, UL 1741 SB, UL9540, IEEE 1547-2018, IEEE 1547.1-2020, UL 1699B, UL 1998, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B, UL1973, UL9540. UL9540A, CEC, SGIP, AC156, UL67, UL1741 PCS, UL869A, UL916
Battery
Battery brand / OEMFortress Power
Battery typeLFP, modular, high voltage
Couplingn/a
Capacity (module / cabinet)14.7kWh to 29.4kWh (4.9kWh per module)
Power7.2kW to 11.4kW (depending on module quantity)
Charge: continuous / peak12kW
Discharge: continuous / peak12kW
Max surge rate80A
ESS / Inverters with closed loop comms  Yes
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Yes. Link
All certifications
Warranty (years / cycles)15Yr/ 8000Cycles

Hoymiles | HIONE and AIONE

hoymiles product lineup

System components

  • Hybrid inverter: The HYS-LV-USG1 Series single-phase hybrid inverter (3.8 kW to 11.5 kW). Monitoring management through S-Miles Cloud allows users to remotely diagnose and track solar power production and battery utilization.
  • AC Coupled inverter: The HAS-LV-USG1 Series is for retrofit applications (3.8 kW to 11.5 kW)
  • MID: HMID-200-USG1 paired with Hoymiles HYS series inverter provides a whole home backup solution for residents. HMID-200-USG1 communicates with Hoymiles HYS series inverters to provide intelligent transfer between on-grid mode and backup mode and equips with firmware OTA function. Reserved service entrance circuit breakers and smart energy meters can bring minimal installation time and cost savings.
  • Battery: The HBX-LV series

Key features: The HIONE has a max. efficiency of 97.6% and CEC efficiency 97.0%. Double MPPT trackers, up to 32A current and a DC/AC ratio up to 150%. Both the HIONE and AIONE have built-in dry contact flexibly set to earth fault alarm, load control, or generator control. Both have integrated arc fault protection and rapid shutdown functions. They support wall-mounted or floor-standing installations. The HBX-LV series is a type of deep cycle high capacity LFP battery with improved safety, long lifespan, and optimized user experience.It is designed with a NEMA Type 4 rating for more flexible and easier installation, with wall-mounted and floor-standing installation options.It has superior performance with up to 10 kWh for a single unit and a maximum of 80 kWh in parallel, which can meet the residential electricity demand.

Operating modes: Self-Consumption mode/Economy mode/Full backup mode/Pure Off-grid mode

Where can it be installed: indoor/outdoor

Battery provider: Hoymiles

ESS Specs
AC and/or DC coupled?DC coupled
Voltage range120/240,211-264V
Roundtrip Efficiency97%
Max power38.4kW
Continuous power38.4kW
Operating temp.4℉~131℉
Battery input voltage40-60V
Is separate critical load panel needed?yes
Is ESS listed to UL 9540?On-going
Energy / load controls
Microgrid interconnect device (MID)?Yes,HMID-200-USG1
No. of smart circuits1
EV charger input / amp ratingYes,64A
Generator input?Yes,100A
Listed as a PCS?No

Hybrid Inverter
Rated output power11.5kW
Max PV input (oversize %)150%
MPPTs / strings per MPPT2/2
Efficiency: Max / CEC97.6%/97.0%
Battery input voltage range40-60V
Output overcurrent protection100A
Max. charge current / discharge current200/200A

All system certificationsIEEE 1547-2018, IEEE 1547.1-2020, SRD2.0,UL 1741, CSA C22.2 No.107.1, UL 1741 CRD, UL 1741 SB, FCC Part 15 Class B,UL 1699B,UL 1998,UN 38.3, UL 1973, UL 9540A,UL 9540(coming soon)
Battery specs / info
Battery brand / OEMHoymiles
Battery typeLiFePO4
CouplingDC coupling
Capacity (module / cabinet)10.24kWh
Power6kW
Charge: continuous / peak120A/160A,1 min
Discharge: continuous / peak120A/160A,1 min
Max surge rateProtection degree: NEMA 4
Load start capability (LRA)/
ESS / Inverters with closed loop comms  HYS-(3.8-11.5)LV-USG1/HAS-(3.8-11.5)LV-USG1
Have you completed 9540A testing?  yes
Is it LISTED to UL 9540?  In progress, expected December
All certificationsUN 38.3, UL 1973, UL 9540A
Warranty (years / cycles)10 years/6000 cycles

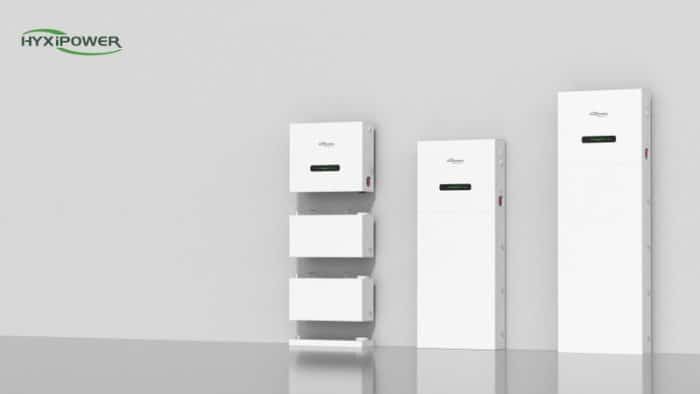

Hyxipower | All-in-One

Hyxipower

System components

  • Inverter Module: The All-in-One hybrid inverter has 160% PV oversizing capability and 3 MPPTs. Fully compatible with Tigo and APS MLPE.
  • Batteries: Modular LiFePO4 batteries stacking up to 11.5kW/21.2kWh.
  • Smart Battery Management System (BMS): This intelligent BMS actively monitors charge and discharge levels, while protecting the system from overcharging, deep discharge, and short circuits, extending the battery’s lifespan.
  • Smart Meter: Optimizes energy management, can limit power exported to the grid.
  • Automatic Transfer Switch (ATS)

Key features: No need to install another box, as this system covers all your energy management needs in one. The advanced smart meter provides real-time load and generation data with zero-injection control. The ATS ensures near-instantaneous transition to backup power during outages. Manufactured with automotive-grade safety standards, the batteries ensure top-tier protection and reliability. The wide operating temperature range (14℉~122℉) guarantees reliable performance in extreme conditions. The inverter has a robust 200A passthrough breaker and a maximum input voltage of 600V, designed for high power applications. Safety is a priority with the inclusion of a smoke detection system and a pressure valve.

Operating modes: Self-Use, Feed-In, Backup

Where can it be installed: Indoor & Outdoor

Battery integrated or sourced separately? Battery integrated on the system

ESS Specs
AC and/or DC coupled?DC Coupled
Voltage range80-600V (considering PV input)
Roundtrip Efficiency94%
Max power48kw (considering max pass-through)
Continuous power5,700VA/23.75A 7,600VA/31.7A 11,500VA/48.0A Depending how many batteries are stacked
Operating temp.14℉ – 122℉
Battery input voltage80 – 560V, Max: 600
Is separate critical load panel needed?NO
Is ESS listed to UL 9540?YES
Energy / load controls
Microgrid interconnect device (MID)?NO
No. of smart circuits1
EV charger input / amp ratingNO
Generator input?YES
Listed as a PCS?NO

Hybrid Inverter
Rated output power11.5kw
Max PV input (oversize %)160%
MPPTs / strings per MPPT1-1-2
Efficiency: Max / CEC~98.2%
Battery input voltage range150-600V (inverter)
Output overcurrent protection200A per phase
Max. charge current / discharge current32A
All system certificationsUL1741 UL9540 FCC
Battery
Battery brand / OEMHyxipower
Battery typeLiFePO4
CouplingAC or DC Coupling
Capacity (module / cabinet)5.3kWh/21.2kWh
Power5.7kW/7.6kW/11.5kW
Charge: continuous / peak30A/32A
Discharge: continuous / peak30A/32A
Max surge rate1.06(32/30)
Load start capability (LRA)48A/200A (off-grid/on-grid)
ESS / Inverters with closed loop commsYES
Have you completed 9540A testing?  YES
Is it LISTED to UL 9540?  YES
All certificationsUL1741 UL9540 FCC
Warranty (years / cycles)10 years 6000 cycles 70% EOL

LG | Home 8 Energy Storage System

LG-Home-8

System consists of: Full Energy Storage System – AC coupled, grid-tied residential system

Key features: LG Electronics Home 8 is an AC-coupled residential energy storage system, designed for compatibility with or without solar integration. It delivers a continuous 7.5kVA AC output and peaks at 9.0kVA for 10 seconds, offering increased power.  A single Home 8 has a total of 15.8 kWh, (14.4 kWh useable) capacity that has an additional 1.4 kWh built in reserve to accommodate automatic dark start and available manual dark start capability that can avoid service calls to recover/replace over discharged batteries.  The LG ESS Home 8 is backed by up to a 10-year top of class 59.8Mwh throughput warranty. Homeowners can monitor home energy use and control the system modes via the ThinQ App, while installers utilize EnerVu for fleet monitoring. Built-in 7-inch touch screen HMI display

Battery integrated or sourced separately? Integrated

ESS Specs Full spec sheets
AC and/or DC coupled?AC
Voltage range240/120Vac split phase
Roundtrip Efficiency92%
Max power9 KVA (10 sec)
Continuous power7.5 KVA
Operating temp.-4 – 122F Discharge 14 – 113F Charging
Battery voltage406.56Vdc Nominal
Is separate load panel needed?Optional  – “protected” load panel better term
Is ESS listed to UL 9540?Yes and tested to UL 9540A
Energy / load controls
Microgrid interconnect device (MID)?MID
No. of smart circuitsN/A (LG ThinQ)
EV charger input / amp ratingN/A
Generator input?ATS required
Listed as a PCS?Yes – PCS import only
Hybrid InverterN/A not a Hybrid Inverter
All system certificationsSystem Safety    UL9540 Enclosure – NEMA Type 3R EMC – FCC Part15 Subpart B Seismic  – IEEE 693-2005, High California CEC, PCS, HECO 14 & 22,  UL869A, UL67
LG ESS Home 8IEEE1547, 1547.1, UL1741,UL1741SA, UL1741SB, CA Rule21, UL1741, C22.2 No.107.1-16,UL1642, UL1973, UL9540A, UL1741 CRD PCS, IEC60730-1 Annex H
LG SE BoxCA Rule21,IEEE2030.5-2018/Sunspec CSIP, UL1741, C22.2 No.107.1-16
Battery
Battery brand / OEMLG Electronics
Battery typeModular Li-ion NMC
CouplingAC
Capacity (module / cabinet)14.4kWh usable with 1 cabinet(unit), max 57.6kW(with 4 units)
Power7.5 kw
Charge: continuous / peakVaries depending on SoC/5.4kw DC max
Discharge: continuous / peak7.5 KVA / 9KVA
Max surge rate 9KVA (10 sec)
Load start capability (LRA)
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Yes
Warranty10 years/59.8Mwh Throughput

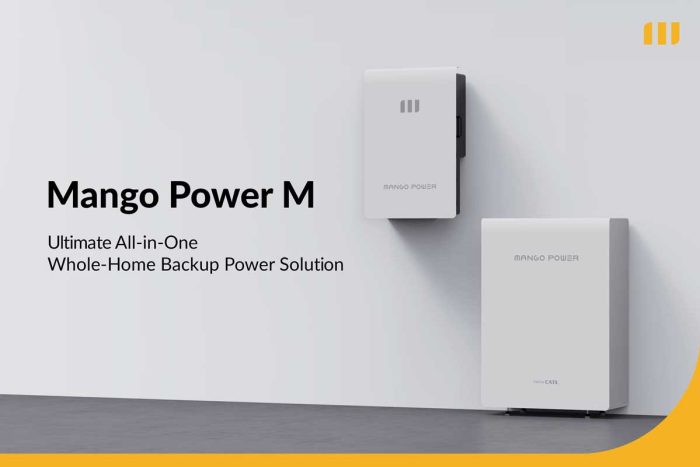

Mango Power | Mango Power M

Mango Power M

System consists of:

  • M Hybrid Inverter (12K):  Integrated, comes fully ready for solar out of the box without additional boxes required and has Built-in ATS / AGS / RSD Transmitter / Breakers.
  • M Battery (5kWh): The CATL LFP battery

Key features: What makes the Mango Power M stand out from other products is its modular design, an all-in-one approach that makes it a lot easier and faster to install or upgrade at any time. Battery capacity can be upgraded on a modular basis, it comes ready for Solar out of the box without additional boxes required and has Built-in ATS / AGS / RSD Transmitter / Breakers. The high capacity of Mango Power M (20kWh) is supported by a high efficiency of 97.5%, Maximum Power Point Trackers are 3(two strings combined and its Solar Input is 18kW. Water and dust resistant and Meets North American safety and EMI standards. The Mango Power M offers easy expansion from 15kWh to 80kWh. Stack up to 10 inverters, increasing the output to an impressive 120 kW.

Operating modes: On-Grid Power: 12kVA/240V &10.4kVA/208V24kVA(500ms) peak power, Backup Power: 12kVA/240V &10.4kVA/208V, Continuous power: 24kW/240V &15.6kW/208V Peak power, Seamless backup transition

Where can it be installed: indoors or outdoors

Battery integrated or sourced separately? Sold together, modular and expandable

Battery partnerships: CATL LFP

Where to buy

ESS SpecsFull spec sheets
AC and/or DC coupled?Both
Voltage range180V-270V
Roundtrip Efficiency97.5%(PV to grid) 94.0%(battery to grid)
Max power24000W 500ms
Continuous power12000W/240V & 10400W/208V
Operating temp.Charging: 32°F~140°F (0°C~60°C) Discharging: -4°F~140°F (- 20°C~60°C)
Battery input voltage44V-60V
Is separate critical load panel needed?Yes
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuits1
EV charger input / amp rating10.8 kW
Generator input?21.6 kW
Listed as a PCS? UL 1741 PCSYes
Hybrid Inverter
Rated output power12000W/240V & 10400W/208V
Max PV input (oversize %)18 kW
MPPTs / strings per MPPT3 MPPT – 2/1/1
Efficiency: Max / CEC99.9%
Battery input voltage range44V-60V
Output overcurrent protection200A
Max. charge current / discharge current50A
All system certificationsCA rule21 UL1741/IEEE1547/UL1973/UL1642
Battery specs
Battery brand / OEMCATL
Battery typeLFP
CouplingDC
Capacity (module / cabinet)From 15kWh/300Ah to 20kWh/400Ah with four M Battery packs
Discharge: continuous / peak250A (for at least 3 M Battery packs)
Have you completed 9540A testing?Yes
Is it LISTED to UL 9540?Yes
All certificationsUL9540 & UL9540A
Warranty6000 cycles(@25℃, +0.5C/-0.5C)

Panasonic | EVERVOLT

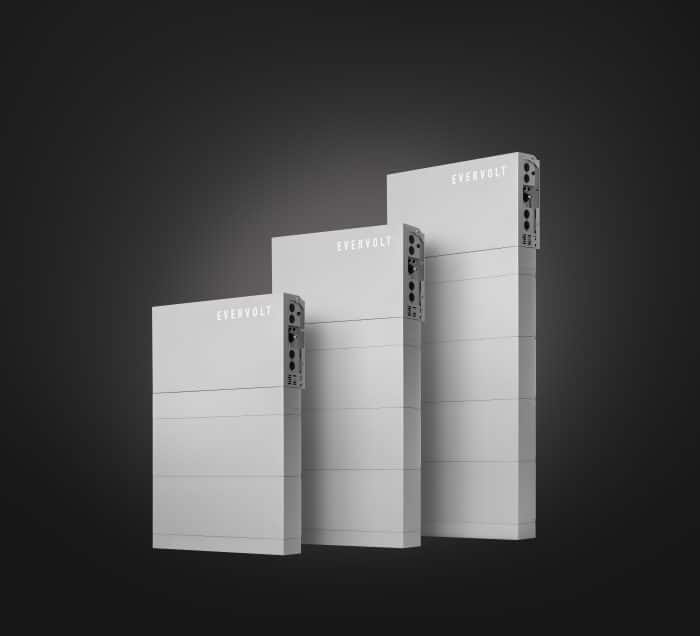

Panasonic EVERVOLT ESS 2-3-4 Image 1 (002)

System components

Panasonic EVERVOLT Home Batteries: Lithium iron phosphate batteries, can provide up to 72 kWh of usable storage capacity for whole-home power.

Panasonic EVERVOLT SmartBox: Energy management device connects the battery, grid power, and solar PV system all in one place. SmartBox controls the connection to the grid and provides a seamless transition to backup power during power outages. SmartBox also provides control of up to six loads to optimize your energy consumption and prolong battery life.

Panasonic EVERVOLT Hybrid Inverter: Converts DC power from solar panels to AC power to energize home loads. It combines a battery and solar photovoltaic inverter into one unit. The new hybrid inverter allows up to 15.2kW of DC input with three MPPT.

Key features:  The Panasonic EVERVOLT Home Battery System’s compact design improves the installation process for Panasonic’s Authorized Installers. Installers can easily install a battery system a variety of ways including indoors, outside or mounted to a wall. Installers can seamlessly integrate the battery with a new or existing home energy system, both DC and AC suited, for a smooth installment. The EVERVOLT is equipped with an integrated transmitter to ensure an easy installation of rapid shut down devices for safe PV array connections. Stackable and lightweight, installers can effortlessly connect up to four units together for additional energy storage. Available in three sizes including 9 kWh, 13.5 kWh, and 18 kWh to meet an installation company’s growing customer energy demands.

Operating modes: back-up mode, self-use mode, time-of-use mode and custom modes

Where can it be installed: Indoors or outdoors

Battery integrated or sourced separately? Integrated within the system

Where to buy

ESS SpecsFull spec sheet
AC and/or DC coupled?Both AC and DC coupled
Voltage rangeMPPT Voltage Range (DC):  120 – 500V Output (AC): 120/240V
Roundtrip Efficiency98%
Max power (EVHB-I7-X10 / EVHB-I7-X15 / EVHB-I7-X20) (10s)  6.19 kW / 9.19 kW / 9.19 kW
Continuous power 7.6 kW AC
Operating temp.–13 to 140°F (–25 to 60°C)
Battery input voltage75 – 450V
Is separate critical load panel needed?No
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuits6
EV charger input / amp ratingN/A
Generator input?Yes
Listed as a PCS?Yes

Hybrid Inverter
Rated output power7608W at 240V
Max PV input (oversize %)15200W (200% oversizing)
MPPTs / strings per MPPT 3 MPPT / 1 string
Efficiency: Max / CEC97.5%
Battery input voltage range75 – 450V
Output overcurrent protection40 A
Max. charge current / discharge current54 A

All system certificationsUL1741, UL1741 SA / SB,UL1741CRD PCS,UL1699B, UL 38.3, UL1973, UL9540, UL9540A, CSA – C22.2 No. 107.1-01, Canadian AFCI according to T.I.L. M-07

For more examples, download the EVERVOLT Case Studies Special Report

Panasonic-EVERVOLT-Case-Studies-Special-Report-1

Name(Required)
Email(Required)
Agree to Privacy Policy(Required)
This field is for validation purposes and should be left unchanged.

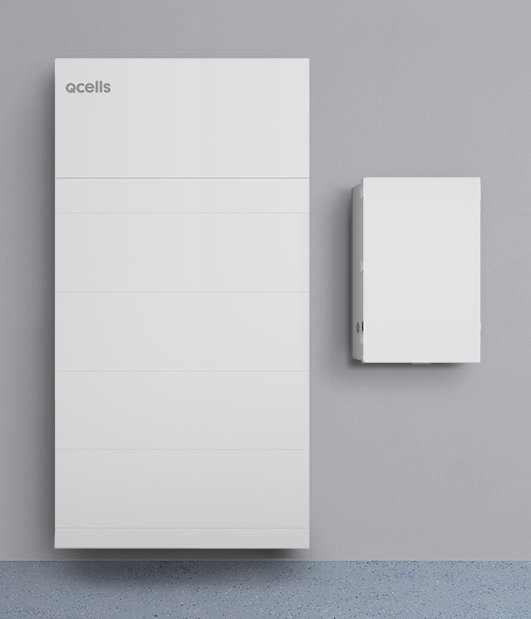

Qcells | Q.HOME CORE

Q.HOME CORE

System components

  • Q.VOLT inverter– Available in 3.8 and 7.6 kW variants and is suitable for both AC and DC coupled applications.
  • Q.SAVE batteries– Stack up to 4 Q.SAVE batteries, with sizing scalable from 10-20 kWh per cabinet.
  • Q.HOME HUB – The backup interface supports multi-inverter parallel connection (up to 4), controls disconnection of home loads and integrates the energy meter and MID.

Key features: Q.HOME CORE offers scalable storage capacity from 10 kWh up to 80 kWh and comes in a modular design for easy and fast installation. In the event of grid outage, the system is capable of utilizing 100% of the inverter’s power rating to backup the chosen loads of your home. Remote monitoring using the Q.HOME web portal or Q.HOME ESS mobile app is included. In the first half of 2025, Qcells will roll out its new generation All-in-One Battery System which pairs seamlessly with Qcells’ new AC Module.

Operating modes: Can be installed in 3 configurations: Solar, Grid Support, Backup. Operating modes include automatic self-use, export limiting, time-of-use and seasonal scheduling functions.

Where can it be installed: Floor or wall mounted, indoor or outdoor (recommended out of direct sunlight, under eaves), ≤3000m above sea level.

Battery integrated or sourced separately? Integrated

Where to buy: Select Greentech Renewables and SolWel distributor locations.

ESS Specs Full spec sheet
AC and/or DC coupled?AC or DC (Hybrid PV)
Voltage rangePV: 90 – 500 VDC
Roundtrip Efficiency95%
Max power8.36 kW (10 seconds)
Continuous power7.6 kW
Operating temp.-13 to 140°F (-25 to 60°C)
Battery input voltage180 – 232 VDC
Is separate critical load panel needed?Depends on system sizing
Is ESS listed to UL 9540?Yes, and UL 9540A (supports ≥20” spacing)
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuitsNone
EV charger input / amp ratingNone
Generator input?Not currently supported (pending)
Listed as a PCS?Yes

Hybrid Inverter (Q.VOLT 7.6SX)
Rated output power7.6kW
Max PV input (oversize %)200%
MPPTs / strings per MPPT3
Efficiency: Max / CEC98% / 97.5%
Battery input voltage range90 – 232 VDC
Output overcurrent protection40 A
Max. charge current / discharge current54 A

All system certificationsUN38.3, UL1642, UL1973, UL9540, UL9540A, UL1741-SB, 3rd edition, PCS-import only, UL1699B, CSA – C22.2 IEEE 1547-2018, UL1741, CSA 22.2 NO.107
Battery
Battery brandQcells
Battery typeLithium (LFP)
CouplingAC or DC
Capacity (module / cabinet)5 / 20 kWh
Power11.1 kW (8.36 kW usable)
Charge: continuous / peak54A / 54A DC
Discharge: continuous / peak54A / 54A DC
Max surge rate1.10
Load start capability (LRA)34.8A AC / each
ESS / Inverters with closed loop comms  Hybrid inverter, BMS and battery stack to form one unit.
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Yes Certification Link
All certificationsUN38.3, UL1642, UL1973, UL9540, UL9540A
Warranty (years / cycles)12 years

SMA | Home Storage

System components

  • Sunny Boy Smart Energy Inverter: Smart, grid-interactive and stand-alone inverter. Its hybrid functionality allows for the installation of solar only systems or solar + storage systems.
  • Energy Meter: A necessary component to manage battery operation and detect the load demand from the home. Allows inverter to manage the battery power.
  • Backup Options: To provide backup power in solar-only situations, Backup Secure unlocks 1.9kW at 120V of backup power in a typical receptacle, and Backup Select can unlock up to 5.75kW at 120V in a dedicated load panel supporting up to 8 single pole breakers.

Key features: SMA Home Storage installation is made easier with built-in connectors and flexible mounting options (wall or floor) for both indoor and outdoor locations (IP65 rated). With its slim profile, SMA Home Storage is designed for versatile installations, keeping space-saving in mind. Battery units are modular (4.72kWh), and scalable — 9.43kWh to 18.86 kWh per battery tower and up to 75.44kWh (with 4 towers in parallel). SMA offers flexible backup solutions for different budgets, ranging from partial to full home backup options. With U.S. based service and support, combined with SMA Smart Connected premium monitoring, peace of mind comes standard. System setup is quick and easy using the SMA 360° app.

Operating modes: Backup, Self-Consumption, TOU Optimization, Zero-Export, Zero-Import, VPP / Demand Response Ready. Depending on use-case, it is possible to have more than one operating mode active at a time

Where can it be installed: Indoors or outdoors (IP65 rated). Wall or floor mount

Battery integrated or sourced separately? SMA inverters and batteries are sold separately. SMA Home Storage may only be paired with the Sunny Boy Smart Energy.

Battery partnerships: SMA supports market-specific compatibility lists for various inverter products.

Where to buy

ESS Specs Full spec sheets
AC and/or DC coupled?DC
Voltage range192-384 (nominal, V)
Roundtrip Efficiencyup to 95.8% @ 0.2°C charge / discharge 25°C / 77°F with 4 battery modules
Max power
Continuous power11.5 kW
Operating temp.14°F to 122°F
Battery input voltage90-500V
Is separate critical load panel needed?No (Dependent on configuration)
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?
No. of smart circuits
EV charger input / amp rating
Generator input?
Listed as a PCS?

Hybrid Inverter
Rated output power3.8-11.5 kW
Max PV input (oversize %)200%
MPPTs / strings per MPPT3 / 4 (dependent on inverter power class)
Efficiency: Max / CEC98.1% / 97.5% (@240V)
Battery input voltage range90-500V
Output overcurrent protection20-60A (breaker dependent on power class)
Max. charge current / discharge current30A

All system certificationsUL 1741 SB/SA, UL 62109-1, UL 1998, UL 1699B Ed. 1, UL9540, IEEE1547, FCC Part 15 (Class A & B), CAN CSA-C22.2, CA Rule 21, HECO Rule 14H, PV Rapid Shutdown System Equipment in accordance with UL1741, NEC 2020, NEC 2023 compliant; UL 9540 AC System certification, UL 9540A, FCC Part 15 Class B, ICES 003 Class B, Type 4x rating, IEC 60529, IEC 62262, UN38.3, AC156, IEEE693
Battery specs / info
Battery brand / OEMSMA
Battery typeLFP
CouplingDC
Capacity (module / cabinet)4.72kWh module / 18.86kWh tower / 75.44 kWh per inverter with 4 towers (planned)
PowerUp to 11.5kW (subject to inverter)
Charge: continuous / peakUp to 52A battery / 30A inverter
Discharge: continuous / peakUp to 52A battery / 30A inverter
Max surge rate
Load start capability (LRA)78A (subject to inverter power class)
ESS / Inverters with closed loop comms  SMA Sunny Boy Smart Energy (SBSE3.8-US-50 – SBSE11.5-US-50)
Have you completed 9540A testing?  Yes (cell, module) / unit and system pending
Is it LISTED to UL 9540? System certification pending
All certifications9540, 9540a pending
Warranty 12.5 years / 8,000 cycles

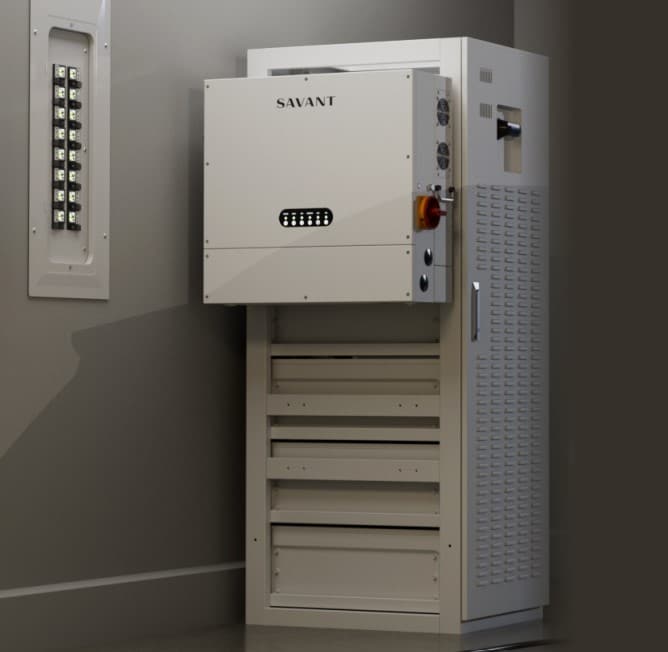

Savant Power | Storage 20

Solar Batteries Savant Technologies banner 800x533

System components

Savant Power Inverter: The Savant Power Inverter is a 12.5kW split phase hybrid PCS inverter with a 100A MID. It includes two built-in MPPTs for DC-coupled solar, as well as support for AC-coupled solar and automatic generators. The Savant Power Inverter can be installed in parallel offering up to an 800A MID configuration with 100kVA of discharge power.

Savant Power Storage 20 Battery: The Savant Power Storage 20 Battery is a 20 kWh LiFePO4 storage system. Each Savant Power Storage 20 Battery can support up to two Savant Power Inverters, allowing for an increased solar capacity. The cabinet and modular battery tray design make installation faster and simpler. Up to eight Power Storage 20s can be installed for 160 kWh of combined storage.

Key features: The Savant Power Storage 20 is an all-in-one performance battery and inverter solution that’s powerful yet simple to install. Scalable to handle electrical services up to 800A across multiple units, the Power Storage 20 delivers clean reliable energy to every circuit in the home. Combine with Savant Load Management to provide automatic load shedding capabilities on grid loss or at various state of charge (SoC) levels. With long battery life and 10-year warranty, you can rest assured that you’ll always have power where you need it when you need it.

Operating modes: Self Sufficiency/ Meter Zero Mode/ Excess Solar to Grid/ Storm Watch/ Off-Grid

Where can it be installed: Indoor/ Outdoor (NEMA4)

Battery integrated or sourced separately? Battery integrated

Battery partnerships: N/A – Savant batteries only

Where to buy: ABC Supply Co. Inc., ECO Direct, Greentech Renewables, Platt Electric Supply, Soligent, Stellavolta, Supplied Energy, Ultimate Integration, Wave Electronics, Zonna Energy

PS20 Specs Full Spec sheet
AC and/or DC coupled?DC Coupled
Voltage range120/240 V
Roundtrip Efficiency93.8%
Max power12.5 kW
Continuous power12.5 kW
Operating temp.32°F – 113°F
Battery input voltage384 V
Is separate critical load panel needed?Not required when used with Savant Load Management for real time load shedding
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?
(Single Inverter/ Dual Inverter)
100A/ 200A
No. of smart circuitsUp to 512
EV charger input / amp ratingUp to 48A EV Charger
Generator input?Yes
Listed as a PCS?Yes
AC Coupled Solar?Yes
Hybrid Inverter
Rated output power12.5kW
Max PV input (oversize %)17 kWh (136%)
MPPTs / strings per MPPT2 MPPTs/ 2 Strings per MPPT
Efficiency: Max / CEC93.8%
Battery input voltage range384 V dc to 467.2 V
Output overcurrent protectionExternal
Max. charge current / discharge current (AC)52A / 52A

All system certificationsFCC Part 15 Class B, IEEE-1547:2018, IEEE-1547:2020.1, CA Rule 21, UL 1741 SA, UL 1741 SB, HECO, UL 1741, UL 1741 PCS, UL9540, UL9540A, UL 1973, UL 1642, UL1699B, UL 60730, C22.2 No. 107.1, 330
Battery specs / info
Battery brand / OEMGotion
Battery typeLiFePO4 – Prismatic Cell
CouplingDC Coupled
Capacity (module / cabinet)Cabinet – with 8 modules (requires all 8 modules installed)
Power:12.5 kW
Charge: continuous / peak34.9 A
Discharge: continuous / peak34.9 A
Max surge rate52 A
Load start capability (LRA)16 kVA
ESS / Inverters with closed loop comms  Yes
Have you completed 9540A testing?  No
Is it LISTED to UL 9540? (please link UL 9540 Certification documentation)  Yes – Intertek Link
All certificationsUL 9540
Warranty10 Year/ 3650 Cycles

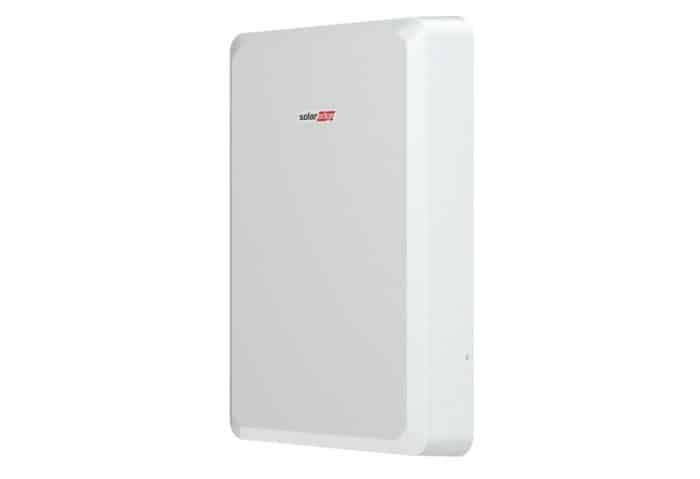

SolarEdge | Home Battery System

SolarEdge Home Battery

System consists of:

  • SolarEdge Power Optimizers: Module-level control optimized for shading. Engineered for high-wattage panels.
  • SolarEdge Home Hub Inverter: The brain of the system, this inverter helps provide industry-leading 94.5% round trip efficiency for more energy, on grid and off.
  • SolarEdge Home Backup Interface: Enables backup feature and supports up to three Home Hub inverters for more power and larger systems.
  • SolarEdge Home Battery: Three batteries can be stacked on a single inverter and can be oversized by up to 200%. During outages, it provides 9.7kWh storage per battery.

Key features: The SolarEdge Home Battery system offers an exceptionally efficient, streamlined energy storage solution designed for reliable, high-power output over extended periods. Leveraging DC-coupled technology, it eliminates the need for multiple AC-DC conversions, boosting annual power savings with up to 10 days of free power generation. The system delivers industry-leading 94.5% round-trip efficiency, and with DC oversizing up to 200%, it maximizes every ray of sunlight. Installers and homeowners benefit from faster setup and fewer wiring requirements, thanks to wireless inverter-battery communication and flexible mounting options (wall or floor, indoor or outdoor). This system also supports stacking up to three batteries per inverter on a single breaker, minimizing installation hassle and often bypassing main panel upgrades (MPUs). Configurable for storage-only, partial, or whole-home applications, SolarEdge’s battery solution ensures adaptable, lasting energy security.

Where can it be installed: Indoor / outdoor rated

Battery integrated or sourced separately? Integrated

Where to buy:  Greentech Renewables, Baywa r.e., Soligent, Sonepar, Krannich, Wesco, ABC Supply

ESS Specs
AC and/or DC coupled?DC-Coupled
Voltage range350-450
Roundtrip Efficiency94.5
Max power7.5kW
Continuous power5kW
Operating temp.14-122 F
Battery input voltage400
Is separate critical load panel needed?No
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?
No. of smart circuits
EV charger input / amp ratingDirect connection to SolarEdge Home EV Charger
Generator input?Yes
Listed as a PCS?Yes

Hybrid Inverter
Rated output power11.5kW
Max PV input (oversize %)200%
MPPTs / strings per MPPT25
Efficiency: Max / CEC99%
Battery input voltage range400V
Output overcurrent protection
Max. charge current / discharge current11.4kW
All system certifications
Battery specs / info
Battery brand / OEMSolarEdge
Battery typeLithium-Ion Battery (NMC)
CouplingDC coupled
Capacity (module / cabinet)9700Wh Usable Energy (100% depth of discharge)
Power5kW
Charge: continuous / peak5kW
Discharge: continuous / peak5000W Continuous output power / 7500W Peak output power
Load start capability (LRA)106A
ESS / Inverters with closed loop comms  BMS is internal to the battery (closed loop)
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Yes
All certificationsUL 1642 cell UL 1973, UL 9540A, UL 9540, UN 38.3 battery FCC Part 15 Class B emissions
Warranty (years / cycles)10 years, including unlimited cycles

Full spec sheets: Home Battery | Home Hub | Power Optimizers | Backup Interface

Tigo | EI (Energy Intelligence) Professional

Tigo-EI-battery-abd-inverter

System components:

  • Tigo EI Inverter – Orchestrates energy production and consumption (when coupled with the Tigo EI Battery). In addition, it enables module-level monitoring, optimization, and rapid shutdown when paired with Tigo TS4 MLPE (Module Level Power Electronics) through the EI platform.
  • The Tigo EI Battery – Can be deployed up to 9.9 kWh per enclosure in 3.3Wh increments and up to 39.6 kWh with 4 enclosures per inverter.

Key features: Solar-plus-storage system tracking, commissioning, monitoring, control, communication, and collaboration solution for solar professionals overseeing multiple installations. With EI Professional, you can track, manage, monitor and control your large or small portfolios of solar installations all in one place. Centralized access to the entire portfolio with one subscription fee for unlimited users. The EI Professional Software package enables real-time visibility of energy flows of systems with Tigo and third-party inverters. Obtain a comprehensive overview of all your solar installations on a single screen.​ Remote Battery Management enables controlling solar-plus-storage system behavior and saves costs. Tailor battery usage and charging through versatile options like Time of Use, Self-consumption, and Backup. Status view shows Enhanced comprehensive equipment health status and information, down to the individual batteries and modules. View a history of physical ​changes (e.g., swapping equipment) or ​alerted events for a streamlined root cause analysis.

Operating modes: Supports load shift, self-consumption and backup

Where can it be installed: IP56/NEMA4 rated for outdoor and indoor installations.

Battery integrated or sourced separately? EI Battery building blocks are modular and sold separately but offer plug-and-play compatibility with other members of the Tigo EI Residential solar-plus-storage solution.

Where to buy

ESS Specs Full spec sheet
AC and/or DC coupled?DC
Voltage range400V
Roundtrip Efficiency94.4%
Max power
Continuous power5,000 W/10,000 W
Operating temp.-10°C ~ +45°C (14°F ~ 113°F)
Battery input voltage360-550v
Is separate critical load panel needed?Not for full-home backup
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuits
EV charger input / amp rating
Generator input?Yes
Listed as a PCS?Yes (EI Inverter)
Hybrid Inverter
Rated output power3.8K: 7,600 7.6K: 15,200 11.4K: 22,800
Max PV input (oversize %)
MPPTs / strings per MPPT3.8K: 2 / 2 7.6K: 3 / 2 11.4K: 4 / 2
Efficiency: Max / CEC3.8K: 98.0% / 97.0 %/ 97.0% 7.6K: 98.4% / 97.5%/ 97.0% 11.4K: 98.5% / 98.0%/ 97.5%
Battery input voltage range350 V – 550 V
Output overcurrent protectionYes
Max. charge current / discharge current3.8K: Up to 11.1 A 7.6K: Up to 21.7 A 11.4K: Up to 32.5 A
All system certificationsFCC Part 15B, UL1741:2021 Ed.3, UL1741:2021 Ed.3 (PVRSS) (SA) (SB),  CSA 22.2-107.1:2016,UL1741 CRD: PCS, UL1699B, IEEE 1547:2018, IEEE 1547.1:2020, HECO-SRD1547.1:2020 Ed.2
Battery specs
Battery brand / OEMPowered by EI Intelligence
TSB-10 -US Specification
Battery typeLithium Iron Phosphate (LFP)
CouplingDC-DC
Capacity (module / cabinet)per battery module: 3.3kWh

Per cabinet:
10: 9.9kWh

 Up to 39.6 kWh with 4 enclosures per inverter
PowerUp to 10kW continuous power
Charge: continuous / peak10: 5,000W

Discharge: continuous / peak10: 5,000W

Max surge rate NA
Load start capability (LRA) NA
Have you completed 9540A testing?  YES
Is it LISTED to UL 9540?  YES
All certifications UL 1973, UL 9540, FCC part 15 class B
WarrantyStandard Warranty:  132 months or 6,000 cycles

Hybrid inverters and smart panels

APstorage | ELS-11.4K

APstorage

System components: ELS-11.4K is to be combined with a Low Voltage DC Battery in a closed-loop communication setup.

Key features:  APstorage PCS, together with a compatible battery (not offered by APstorage), becomes a complete and independent AC coupling storage solution for residential PV installations. It can be used with any new or already installed PV systems without changing equipment in place.  APstorage will help home-owners to optimize their utility bill, offering full flexibility to manage their Electrical consumption.

Operating modes: Backup Mode, Self-Consumption Mode, Time of Use Mode

Where can it be installed: Indoor or outdoor with overhang.

Battery integrated or sourced separately? Sourced separately, but APbattery can be purchased with APsystems, manufactured in partnership with UZ. APbattey has closed loop communication with inverter.

ESS Specs
AC and/or DC coupled?AC coupled
Voltage range240VAC
Roundtrip Efficiency
Max power17.1kW (10 seconds)
Continuous power11.4kW
Operating temp.-25°C – 65°C
Battery input voltage40-60V
Is separate critical load panel needed?Yes
Is ESS listed to UL 9540?Yes
All system certificationsUL1741; CSA C22.2 No. 107.1-16; CA Rule21; UL1741 CRD UL1741SB; IEEE1547; SRD-V2.O
Battery specs / info
Battery brand / OEMUZ
Battery typeLFP
CouplingDC
Capacity (module / cabinet)10.24kWh
Power6.14kW
Charge: continuous / peak120A / 160A 1min
Discharge: continuous / peak120A / 160A 1min
Max surge rate8.19kW 1min
Load start capability (LRA)160A
ESS / Inverters with closed loop comms  Yes
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Pending, November completion
All certificationsTUV / IEC 62619 / IEC 62040/ IEC 61000 / UN38.3/ UL9504A/ RoH / REACH
Warranty (years / cycles)10 years

Fronius | GEN24 Plus

Fronius GEN24

System components

  • GEN24 Plus hybrid inverter – The standard GEN24 can be upgraded to the GEN24 Plus at any time via an over the air software update.
  • The Fronius Smart Meter WR: The Fronius Smart Meter WR is an easy to configure energy meter which allows for greater monitoring possibilities within Solar.web.
  • The BYD Battery-Box Premium HVM: Modular and expandable battery which is lightweight, and easy to install.
  • The Essential Backup Load Unit: Keeps your critical loads powered during grid outages.

Key features: The GEN24 Plus is one of the fastest inverters to install and commission on the market today. The standard GEN24 that can be upgraded to the GEN24 Plus at any time via an over the air software update. A built-in outlet backup mode called PV-Point and an essential backup mode allows customers to back-up their critical loads. The Fronius Smart Meter allows the energy storage system to perform self-consumption optimization, export limitation, and gives a more granular approach to monitoring the home energy usage. The Fronius Smart Meter WR can enroll customers in performance-based incentives like SREC, with a 0.5% accuracy. Whether it’s a sudden blackout or a planned outage, the Essential Backup Load Unit offers peace of mind, so customers can trust that they’ll always have the power they need when it matters most.

Operating modes: Essential Backup, PV-Point Backup, On-Grid, Import Only, Export Only, No Exchange

Where can it be installed: Indoors/Outdoors

Battery integrated or sourced separately: Sourced Separately

Battery partnerships: BYD

Where to buy: BayWa r.e., Krannich, The Powerstore

On-Demand Webinar: Unveiling the Future with Fronius GEN24

Fronius-Primo-GEN24-208-240-Plus-10.0-ESS-HVM-us SpecsFull spec sheets
AC and/or DC coupled?DC Coupled
Voltage range160 – 413 Vdc Battery
Roundtrip Efficiency (PV –> Battery –> Grid)~93.5% Battery Round Trip Efficiency * MPPT efficiency * Inverter maximum efficiency
Max power13,870VA, (maximum 5 seconds.)
Continuous power10,000VA
Operating temp.14F to 122F
Battery input voltage150–455 Vdc
Is separate critical load panel needed?YES
Is ESS listed to UL 9540?YES
Energy / load controls
Microgrid interconnect device (MID)?Essential Load Backup Unit
No. of smart circuitsn/A
EV charger input / amp ratingn/A
Generator input?No
Listed as a PCS?No (upcoming)

Hybrid Inverter
Rated output power3.8kW – 10kW
Max PV input (oversize %)150%
MPPTs / strings per MPPT2/2
Efficiency: Max / CEC97.5 / 97
Battery input voltage range150–455 Vdc
Output overcurrent protection60A
Max. charge current / discharge current22 / 22

All system certificationsUL 1741 Third Edition (incl. UL1741 Supplement SA and SB), UL 1741 CRD – Non-Isolated EPS Interactive PV Inverters Rated Less Than 30kVA UL1998 (for functions: AFCI, RCMU, PVRSE and isolation monitoring), IEEE 1547:2018 incl. IEEE 1547a:2020, IEEE 1547.1:2020, IEEE 1547:2003 incl. IEEE 1547.1:2005 ANSI/IEEE C62.41, FCC Part 15 A & B, CSA C22. 2 No. 107.1-16 (reaffirmed 2021), CSA C22.2 No.290-19, CSA C22.2 No.330-23, CSA C22.3 No.9:20 UL1699B:2021;  UL 9540 Ed. 3 (only for Primo GEN24 208-240 Plus) – certification planned

GoodWE | ES-US

GoodWe ES-US

System components

  • Hybrid solar + storage PV inverter
  • Battery inverter/charger
  • Full Energy Storage System

Key features: The GoodWE hybrid solar + storage products were designed to optimize the installation and commissioning. All code compliance requirements are already included, such as rapid shutdown, Arc-Fault detection interruption. Multiple ways to monitor the system by the installer and user, with flexible connection to the internet, from LAN, Wi-Fi, 4G. The product is integrated and compatible with several batteries available in the US market, including the GoodWE Lynx. Allowing the installer to have flexibility of installation. System ranges from 5KW to 11.4 KW.  Output voltage 120/240V split phase.  CEC efficiency 97%. Max. Output Apparent Power 2-time nominal for 10s

Operating modes: Self-consumption, Backup, Time of Use

Battery integrated or sourced separately? Sourced separately

Battery partnerships: LG

Where to buy: Greentech, Krannich, GoGreenSolar, EcoDirect, The Power Store, Edges, Supplied Energy, NAZ Solar Electric

ESS SpecsFull spec sheet
AC and/or DC coupled?DC
Voltage range211-264 AC
Roundtrip Efficiency95%
Max power40 to 47.5 A
Continuous power5Kw to 11.4Kw
Operating temp.-31°F ~ +140°F (-35°C ~ +60°C)
Battery input voltageNominal 300Vdc
Is separate critical load panel needed?Whole home and partial supported
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuitsNone
EV charger input / amp ratingMax 40A set from factory at 16A
Generator input?No
Listed as a PCS?Yes

Hybrid Inverter
Rated output power5Kw to 11.4Kw
Max PV input (oversize %)150%
MPPTs / strings per MPPT2-4/only 1 string per MPPT
Efficiency: Max / CECMax. 97.6%
Battery input voltage range80-495
Output overcurrent protection2P 30-60A
Max. charge current / discharge current50A

All system certificationsUL1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1, UL 1741, CSA 22.2 No. 107.1, UL 1998, UL1699B, FCC part15 CLASS B

Lumin | Lumin Smart Panel

lumin1

System components

  • Cape board | The Cape Board handles the on-board computing and processing of data from other inputs, such as the sensor boards, CTs, grid detection circuit, and integrations with third-party equipment.
  • Sensor boards | The two sensor boards each measure six circuits for a total of up to twelve circuits, which are also controllable via corresponding relays.
  • Current transformers (CTs) | The Lumin Smart Panel provides a single set of CTs out of the box but can accept a second pair for additional monitoring and configurations.
  • Pre-wired conduit | The Lumin Smart Panel comes with all conductors pre-connected within the panel and fed through a flexible metallic conduit, with the wire whip extending from the end of the conduit. The pre-wiring includes all sensor lines and the conductors for each circuit.
  • Panel enclosure | The enclosure is the protective housing for the Lumin Smart Panel.

Key features: The Lumin Smart Panel is a force multiplier for any home energy system, extending battery backup and enhancing control. It’s integrated with major solar storage brands, enabling fewer batteries to power more circuits for longer through dynamic and customizable load management. Its retrofit-ready design and universal compatibility with all energy systems simplify installation, saving installers time and reducing truck rolls.

Operating modes: Smart Power Mode (manage loads running on a backup energy source during a grid outage), Custom Schedules (optimize energy use around time-of-use rates and demand charges), Manual Control (users turn circuits on or off and adjust priorities as needed)

Where can it be installed: The Lumin Smart Panel can be installed indoors or outdoors, near the existing load center of a home.

Battery integrated or sourced separately? Sourced Separately

Battery partnerships: SolarEdge, Enphase, Tesla Powerwall, Franklin WH, EG4

Where to buy: Greentech Renewables, Rexel, RENVU, U.S. Renewables Solutions, Signature Solar, Wesco, SUNRGY, PowerStore

Lumin Smart Panel Specs Full spec sheets
AC and/or DC coupled?AC
Voltage range120/240 VAC Split-Phase, 50–60Hz
Roundtrip Efficiency
Max power60 A per Line × 6 Lines and  30 A per Line × 6 Lines
Is separate critical load panel needed?All Makes/Models/Brands of Electrical Panels and Breakers
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?
No. of smart circuitsUp to 12 circuits of control
EV charger input / amp rating
Generator input?
Listed as a PCS?


Solis | S6 Hybrid (low and high voltage options)

Solis ESS products

The S6 High Voltage (HV) Hybrid | Power classes ranging from 3.8 to 11.4kW. The system leverages an open ecosystem, meaning it can work effectively with several industry leaders in battery, RSD, MLPE and racking technologies to reduce long-term costs and elevate scalability. Easily add on capacity or storage or deploy shade mitigation when it’s needed. Realize systems that perform and operate longer, with high input ratings and wide operating voltage windows. Battery partnerships: UL9540 Listed with Pytes, PylonTech, Soluna, HomeGrid, Dyness, EndurEnergy, Soluna, BYD, LG

S6 Low Voltage (LV) Hybrid *new* | The S6 Low Voltage (LV) Hybrid features a string current of up to 20A, perfectly matching large, high-efficiency, and bifacial PV modules. Features a 10-second, 200% surge power backup overload capability, along with six customizable charge/discharge time settings. This solution also includes generator connectivity and automatic generator On/Off control. Includes 200A pass-through capacity. The inverter allows for stacking up to six units in parallel, enabling a single installation to reach 96kW. Additionally, it features an intelligent AC coupling scheme, facilitating easy upgrades to existing grid-connected systems. Battery partnerships S6 low-voltage: At launch, our partners will include Pylontech, Discover, Soluna, HomeGrid, Pytes, EndurEnergy, Simpliphi

SolisHub is the Microgrid Interconnect Device (MID) for the PV, batteries, generator, grid, and home loads. It acts as both a 200A pass-through, manual bypass switch and an intelligent load manager. SolisHub makes whole-home backup possible by allowing the integration of multiple inverters for greater PV power output and battery storage capacity. SolisHub allows up to 200Z continuous backup power with integrated autotransfer and manual disconnect. It also provides generator integration, allowing for automatic whole-home backup when available PV and battery power are not sufficient to support all of the home loads.

Operating modes: Partial or Whole Home Back Up Options; Self Use, Export Priority, Peak Shaving, Off-grid , Backup , Time-of-Use (TOU)

Where can it be installed: NEMA 4X so indoor or outdoor applications are supported

Battery integrated or sourced separately? Sourced Separately

Where to buy

S6 High VoltageFull S-6 HV spec sheets
AC and/or DC coupled?DC coupled
Voltage range80-520V
Roundtrip EfficiencyNA
Max power11.4kW
Continuous power11.4kW
Operating temp.-13 °F to 140 °F (-25°C to 60°C)
Battery input voltage120-500V
Is separate critical load panel needed?Yes
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?SolisHub
No. of smart circuits
EV charger input / amp rating71.3
Generator input?Yes
Listed as a PCS?Yes with SolisHub

Hybrid Inverter
Rated output power3.8-11.4kW
Max PV input (oversize %)600V
MPPTs / strings per MPPT2-4/1
Efficiency: Max / CEC97.6/97%
Battery input voltage range120-500V

S6 Low Voltage Specs
AC and/or DC coupled? DC Coupled /AC Coupled
Voltage range 80-520 V
Roundtrip Efficiency
Max power 16KW
Continuous power 16KW
Operating temp. -40 °F to 140 °F (-40°C to 60°C)
Battery input voltage 48V
Is separate critical load panel needed?Yes
Is ESS listed to UL 9540?In Progress
Energy / load controls/SolisHub
Microgrid interconnect device (MID)? Yes
No. of smart circuits 4 x 60A
EV charger input / amp rating 60A
Generator input? Yes
Listed as a PCS? Yes (In progress)

Hybrid Inverter
Rated output power 16kW
Max PV input (oversize %) 200%
MPPTs / strings per MPPT 3/2
Efficiency: Max / CEC 97.2%
Battery input voltage range 40 – 60 V
Output overcurrent protectionYes
Max. charge current / discharge current 290A

All system certificationsUL1741SB, UL1741SA, IEEE1547-2018, UL1699B, UL1998, FCCPart15ClassB, California Rule21, NEC 690.12-2020, CAN/CSA C22.2107.1-1
SolisHub specs Full SolisHub spec sheet
Voltage range204-276V
Max power11.4kW X 3
Continuous power200A
Operating temp.-13°F to 131°F (-25°C to 55°C)
Battery input voltage204-276V
Energy / load controls
Microgrid interconnect device (MID)?Yes
No. of smart circuits4
EV charger input / amp ratingNA
Generator input?Yes
Listed as a PCS?Yes

Batteries and BMS

Briggs and Stratton | SimpliPHI 6.6 Battery

The new SimpliPHI 6.6 home battery is designed by installers for installers. Stackable and wire-free, the batteries simply stack together and install in minutes. The RapidStak connector includes all power and communications – no wires, DIP switches or pin-outs needed. Outdoor rated, the SimpliPHI 6.6 battery can be installed indoors or out, on a wall or on the ground. Our inverter agnostic approach means that installers can choose an inverter based on their preference.

Key features: The SimpliPHI 6.6 battery is UL 9540 A tested and certified to UL 9540 Edition 3. The RapidStak connectors feature alignment guides that ensure the batteries are properly connected and eliminate the chance for reverse polarity.

SimpliPHI 6.6 specs Full spec sheet
Battery brand / OEM Briggs & Stratton Energy Solutions
Battery type LFP Residential Battery
CouplingPrimarily DC, batteries are agnostic to 48V inverters that support AC Coupling & lithium settings
Capacity (module / cabinet) 6.65 kWh per battery, stack up to 120 kWh
Power Up to 6.65 kWh per battery
Charge: continuous / peak100ADC
Discharge: continuous / peak130ADC
Max surge rate 240 ADC, 2 sec / 300 ADC 1 sec
Load start capability (LRA) N/A
ESS / Inverters with closed loop comms  Sol-Ark 8K-2P, 12K-2P, 15K-2P Lux Power- LPS Series GroWatt- SPH 48V Series Megarevo- R6-12KH3 Series
Have you completed 9540A testing?   Yes
Is it LISTED to UL 9540?   Yes, UL-9540_6.6_BATT_SYSTEM.pdf
All certifications UL 9540 Edition 3, UL 9540A, UL1973, UL 1998 + 991, UN 38.3, UN 3480, IEC62619
Warranty 10 Years

BYD | BYD Battery-Box Premium HVM

BatteryFull spec sheet
Battery brand / OEMBYD
Battery typeModular High Voltage
CouplingDC
Capacity (module / cabinet)11.0kWh – 19.3kWh
Power10,000W depending on battery
Charge: continuous / peak50A / 75A (3s)
Discharge: continuous / peak50A / 75A (3s)
Max surge raten/A
Load start capability (LRA)N/A
ESS / Inverters with closed loop comms  Fronius GEN24 Plus / Fronius GEN24 (with Up.Storage)
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?Upcoming
All certificationsUL9540A / UL1973 / IEC60730 / FCC / UN38.3
Warranty 10 years

EG4 | WallMount All Weather battery

The EG4 WallMount All Weather battery offers 14.3 kWh of storage with a 200A max continuous discharge, making it ideal for outdoor use.  It has an integrated self-heating feature, is backed by a 10-year warranty and is EMP-hardened, protecting it from natural and human-caused electromagnetic pulses. It is equipped with a 200A battery management system (BMS), supporting over 8000 cycles at 80% depth of discharge, providing up to 82.6MWh of energy production over its lifetime. Its innovative Emergency Stop (E-Stop) function allows users to instantly shut down all batteries and inverters with rapid shutdown capabilities at the press of a button.  The battery pairs seamlessly with EG4 inverters, and features weather-tight quick connects, 600A busbars, E-Stop for emergencies, dual fire arrestors, closed-loop communication, and a touchscreen for easy monitoring.

Wallmount All WeatherFull Spec sheet
Battery brand / OEMEG4 Electronics
Battery typeLithium iron phosphate (LiFePO4)
CouplingDC
Capacity (module / cabinet)14.3kWh
Power280Ah
Charge: continuous / peak200A Max. Continuous
Discharge: continuous / peak200A Max. Continuous
Max surge rate300A for 3 seconds
Load start capability (LRA)
ESS / Inverters with closed loop commsEG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
Have you completed 9540A testing?Yes
Is it LISTED to UL 9540?Yes. Certification.

All certificationsUL1973, UL9540A
Warranty (years / cycles)10 Year Warranty, >8000 Cycles @ 80% DOD

GoodWe | Lynx FH-US

goodwe Lynx 01

The GoodWe high-voltage battery Lynx Home FH-US Series is a perfect match for residential energy storage systems in North America. It is compatible with GoodWe ES-US/SBP-US/A-ES/A-BP inverters and offers a wide capacity range from 9.6 kWh to 19.2 kWh per cluster, providing comprehensive energy storage options to meet demanding project requirements from self-consumption optimization to backup power. The stackable self-detecting modules make the system especially simple to install and maintain.

Battery specsFull spec sheet
Battery brand / OEMGoodWe
Battery typeLFP
Coupling
Capacity (module / cabinet)9.6-19.2kW-h
Power9.6-19.2kWh
Charge: continuous / peak50A
Discharge: continuous / peak50A
Max surge rate1.2-1.5 times @10s
Load start capability (LRA)1.2-1.5 times @10s
ESS / Inverters with closed loop comms  yes
Have you completed 9540A testing?  YES
Is it LISTED to UL 9540?  YES. Certification.
All certificationsUL1973 Certification
Warranty (years / cycles)4,000 cycles

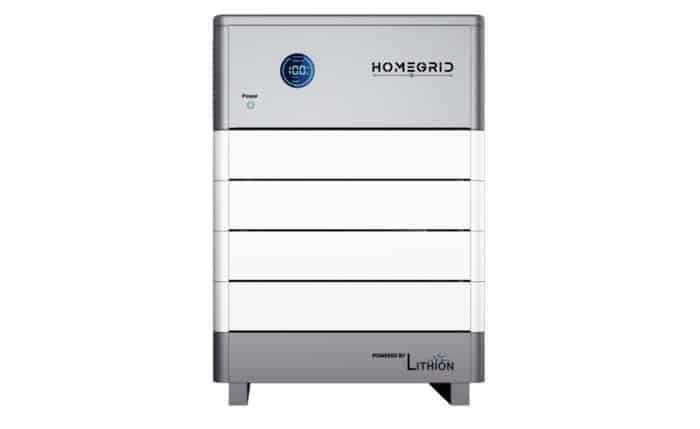

Homegrid | HV Stack’d Series

HomeGrid Stak'd

The HomeGrid HV Stack’d Series is designed to deliver a true whole-home backup with up to 15 kW of continuous power. Its modular, floor-standing system scales from 9.6 to 38.4 kWh, allowing installers to tailor setups to meet customers’ exact needs and expand with additional stacks or modules as needed. Our plug-and-play setup enables a quick 30-minute installation and commissioning, saving time and maximizing profitability. With its efficient design and seamless integration, the HV Stack’d Series provides a scalable and reliable backup power solution for any home or small commercial project.

HC Stak’d specsFull spec sheet
Battery brand / OEMHomeGrid: Powered by Lithion
Battery typeLFP Prismatic Cells
CouplingDC
Capacity (module / cabinet)2-8 module stacks (4.8 kWh/module) 9.6-38.4 kWh 576 kWh max per system (fifteen 8-stack units)
Power8.6-15 kW
Charge: continuous / peak22-39 A / 10.8-18.8 kW
Discharge: continuous / peak22-39 A / 10.8-18.8 kW
Max surge rate10.8-18.8 kW (60 sec)
Load start capability (LRA)(Didn’t hear back from engineering in time for this one, leave blank)
ESS / Inverters with closed loop comms  Solis S6 Hybrid
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?  Yes. Certificate
All certificationsUL 1642, UL 1973, UN 38.3, UL 9540, UL 9540a, CEC, SGIP, OGPe
Warranty (years / cycles)10 years

Hyxipower | AC Battery

Designed for seamless integration with any third-party solar inverter, providing unmatched flexibility and performance in energy storage systems. With an IP67-rated enclosure for durability and dual AC/DC II/II surge protection, it ensures safety and longevity in both residential and commercial installations. The system supports cloud-based monitoring through Wi-Fi or 4G, offering real-time data for optimized management. Ideal for retrofitting existing solar systems or building new setups, the Battery Module guarantees efficiency and reliability in any energy solution.

Key features: The AC Battery features a battery module that offers a seamless plug-and-play solution compatible with any third-party solar inverter. The modular LiFePO4 batteries provide scalable capacity up to 21.2 kWh, ensuring reliable backup power for both residential and commercial applications. It supports both partial home and whole home backup, offering flexibility for diverse energy needs. Manufactured with automotive-grade safety standards, the batteries ensure the highest levels of protection and reliability. The system comes complete with an advanced smart meter, automatic transfer switch (ATS) and a built-in Battery Management System (BMS), meaning no additional external box is required. With an IP67-rated design and advanced surge protection, this system guarantees long-term durability and safety. It also supports cloud-based monitoring via Wi-Fi or 4G for real-time energy management. Whether you’re upgrading your storage or enhancing backup power, this AC Battery solution delivers unmatched versatility and simplicity.

AC Battery
Battery brand / OEMHyxipower
Battery typeLiFePO4
CouplingAC or DC Coupling
Capacity (module / cabinet)5.3kWh/21.2kWh
Power5.7kW/7.6kW/11.5kW
Charge: continuous / peak30A/32A
Discharge: continuous / peak30A/32A
Max surge rate1.06(32/30)
Load start capability (LRA)48A/200A (off-grid/on-grid)
ESS / Inverters with closed loop commsYES
Have you completed 9540A testing?  YES
Is it LISTED to UL 9540?YES
All certificationsUL1741 UL9540 FCC
Warranty10 years 6000 cycles 70% EOL

Pylontech | PowerCube

PowerCube-M5A-180-64/704V-L15 | The Pylontech M5A 180 is a high-density LFP battery, featuring a capacity of 245 Ah and 15.68 kWh at a nominal voltage of 64V per module. Regarding performance, it achieves a depth of discharge of 98% and a charge/discharge efficiency of 97%. In terms of safety, the battery has been certified at the cell level by the UL9540A standard, underscoring its reliability and safety in demanding applications.

Product name
Type/modelPowerCube-M5A-180-64/704V-L15
Nominal voltage704V
Rated capacity245Ah
Recommended charging voltage781V
Upper limit charging voltage792V
Final discharge voltage550V
Maximum charging current180A
Maximum discharging current180A
Charging temperature range-8°C to 58°C (Derating > 40°C)
Discharging temperature range-10°C to 58°C (Derating > 40°C)
Ideal operating temperature10°C to 40°C
Overcharge protected voltage supply by battery system≥3.65V /Cell
Protective ClassI
Enclosure Protection (IP)IP20
Pollution degree (PD)PD2
Cooling typeFan cooling
Altitude4000m
Battery typeLFP
CouplingDC-coupling
Capacity (module / cabinet)245Ah(module)
Power86.24kW(per string)
Charge: continuous / peak86.24kW/126.72kW
Discharge: continuous / peak86.24kW/126.72kW
Max surge rateNA
Load start capability (LRA)NA
ESS / Inverters with closed loop comms  With Sinexcel inverter
Have you completed 9540A testing?  YES
Is it LISTED to UL 9540?YES
All certificationsUL1973, UL9540A, UL9540, IEC62477-1, IEC62040-1, IEC62619, IEC63056, UKCA,CE LVD, CE EMC, UN38.3, VDE-AR-E 2510-50
Warranty 10 years

Pytes | HV48100

Pytes and Solis

PYTES-HV48100 is a high-voltage battery storage system that utilizes Tier 1 Automotive Grade A LiFePO4 cells, offering enhanced safety and reliability for energy storage solutions. It features a self-developed, field-proven BMS, ensuring optimal performance and protection, while maximizing longevity. The HV48100 simplifies installation, reducing setup time and complexity. Its modular, rack-mounted design provides  ultimate flexibility, allowing for scalable configurations to meet the various storage needs of virtually any type of system. Additionally, the system is equipped with an integrated Wi-Fi module, enabling remote monitoring, battery status checks, alarm notifications, and firmware upgrades.

Battery specsFull spec sheet
Battery brand / OEMPYTES
Battery typeLiFePO4
CouplingDC
Capacity (module / cabinet)5.12kWh/40.96kWh
Power2.56kW per Module/20.48kW per Cabinet
Charge: continuous / peak50Adc/102Adc
Discharge: continuous / peak50Adc/102Adc
Max surge rate5.22kW per Module
Load start capability (LRA)167A LRA @240Vac per cabinet
ESS / Inverters with closed loop comms  Solis-S6 High Voltage (HV) Hybrid
Have you completed 9540A testing?  YES
Is it LISTED to UL 9540?  YES. Certificate
All certificationsUL 1973, UL 9540A, UL 9540, IEC 62619, CE-RED &CE-EMC, UN38.3
Warranty (years / cycles)10 years/6000 cycles

Renon | Xtreme

Renon Xtreme battery

Key features: One-Key Start functionality for effortless system activation. Cable-Free design between modules enables quick and easy installation, with a 30 kWh system taking less than 15 minutes to set up. Extensive Certifications including IEC 62619, UN 38.3, UL1973, and UL 9540A, demonstrating a strong commitment to safety and regulatory compliance. Renon’s proprietary Cloud platform and mobile App provide seamless system monitoring, maintenance, and one-key upgrades for hassle-free ownership. High Output Power capacity of up to 15 kW, meeting the power needs of even large family load. Scalable Capacity Range from a compact 10.02 kWh up to a versatile 912 kWh, allowing the system to be precisely tailored to diverse energy storage requirements.

Components:

Renon battery specs

Operating modes: Charging/Discharging/Back up mode

Where can it be installed: IP65 for both indoor and outdoor

Battery integrated or sourced separately? Battery integrated

Where to buy

Specs Full spec sheets
AC and/or DC coupled?DC
Voltage range43.2-58.4V
Roundtrip Efficiency94%
Max power15.36kw
Continuous power14.36kw
Operating temp.Discharge: -4~122℉ / -20~50℃
Charge: 32~122℉ / 0~50℃
Battery input voltage48/51.2V
Is separate critical load panel needed?No
Is ESS listed to UL 9540?Yes
All system certificationsUL1973/UL9540A/UL9540

Commercial size

Pylontech | Container A2000-OMNI-UL

Pylontech

The Pylontech A2000-Omni-UL is an All-in-One C&I ESS 20ft container solution based on a DC 1000V platform. The system includes two PCS units managing six clusters of batteries separately, and includes an independent temperature management system, a confluence box, and BMS. For fire safety, this product utilizes perfluorohexanone and is also equipped with smoke alarms, hydrogen detectors, carbon monoxide detectors, and temperature sensors. For thermal management, it is handled by a dual duct air-cooling system to effectively control battery temperature and ensure consistency.

Key features:  The Pylontech A2000-Omni-UL is an All-in-One C&I ESS 20ft container solution utilizing Pylontech M5A180 battery modules. This product offers flexible expansion capabilities from 1MWh to 2MWh, tailored to meet specific demands. Thanks to its superior structural design, it provides ease of installation and maintenance. In terms of safety certifications, the A2000 Omni UL has received several major global certification such as CE, UL, and GB for the system level, and UL9540A certification for the cell level. Also, it is compatible with 50+  global popular inverter brand.

Operating modes: On grid / Off grid: Peak Shaving/Energy Shifting/Self-Consumption

Where can it be installed: Commercial Building/Industrial Park/Mine/Farming Land/Hospital/etc

Battery integrated or sourced separately? Integrated. Self Design & Self Manufacturing

Where to buy

ESS Specs Full spec sheets
AC and/or DC coupled?AC coupled
Voltage range594~781V
Roundtrip Efficiency86%
Max power1000kW
Continuous power1000kW
Operating temp.-20℃~50℃ (≥45℃,De-rating)
Battery input voltage704V
Is separate critical load panel needed?Yes
Is ESS listed to UL 9540?YES

Container Parameter

AC SideNominal power (kW)2*500
AC frequency (Hz)60Hz
AC voltage (Vac)400
AC connection3P3W+PE
AC max current (A)2*760(short term overload 836)
Connection type of auxiliary supply3P4W
Auxiliary output and input voltage277/480 Vac
Auxiliary max output and input current60A
Auxiliary output and input frequency50/60Hz
DC SideRated energy (kWh)2069.76
Battery nominal Voltage (V)704
Battery Voltage range (V)594~781
Max current (A)2*880A
SystemCooling typeAir
Operating temperature range (°C)-20℃~50℃ (≥45℃,De-rating)
Storage temperature range (°C)-20℃~60℃
Altitude (m)≤4000m(>3000m,De-rating)
Pollution degreePD3(Outside), PD2(Inside)
Protective ClassI
Dimensions L*W*H (mm)6058(-6,0)*2438(-5,0)*2896(-5,0)
Overvoltage category         III
IP degreeIP54
Weight(kg)30480
Short circuit
Maximum overcurrent protective device rating1200A
Output available fault current2*950.9A
Output available fault duration71ms

PCS Parameter

Product nameGrid-Support Utility-Interactive Energy Storage Inverter
Type/modelPWS1-500KTL-NA- 8M1
Utility-interactive ModeNominal power500kVA
AC max power550kVA
AC frequency60(-2.5~2.5)Hz
AC voltage400(-15%~15%)Vac
AC current0~760A
AC connection3-Phase 3-Wire
Battery voltage range600~900Vdc
Quantity of battery strings1
DC max current in each branch880A
THDi≤3%
AC PFListed: 0.8~1 leading or lagging (Controllable)
Actual: 0.1~1 leading or lagging (Controllable)
Stand-alone ModeNominal AC output power500kVA
AC max power550kVA
AC frequency60(-2.5~2.5)Hz
AC output voltage400V(±10% configurable)Vac
AC current0~760A
Battery voltage range600~900Vdc
Quantity of battery strings1
DC max current in each branch880A
Output THDu≤2%(Linear load)
AC PFListed: 0.8~1 leading or lagging (Controllable)
Actual: 0.1~1 leading or lagging (Controllable)
Overload Capability110%~115% 10min
115%~125% 1min
125%~150% 200ms
PhysicalCoolingForced air cooling
Noise75dB
Max elevation3000m/10000feet (> 2000m/6500feet derating)
Operating ambient temperature-20°C to 60°C (De-rating over 50°C)
Humidity0~95% (No condensing)
Size (W×H×D)1100×2160×800 mm

Sungrow | ST Series

Sungrow ST Series

ST570kWh-250kW-2h and ST1145kWh-250kW-4h

The system consists of: Ready to install liquid-cooled battery energy storage system with one (2-hour version) or two (4-hour version) battery cabinets, and a PCS cabinet. Liquid cooling provides two years longer battery service life and 15% higher discharge capacity, while maintaining less than 2.5 degree C delta between cells. Flexible installation eliminates the need for underground conduit installation, and up to 60% reduction in installation time.

Key features: Sungrow safety standards exceed North American standards with millisecond level fault detection and second-level circuit cutoff to avoid arc hazards.

Operating modes: Self-consumption, Feed-in Priority, Backup, Off-grid, Time-of-Use, and Hybrid, depending on the energy storage system and its intended use

Where can it be installed: This product is specifically designed for the United States and Canadian markets, but similar products are available worldwide.

Battery integrated or sourced separately? The system is designed, engineered, and sold as a packaged design. It is not intended for sale as separate battery and PCS units. The system controller, auxiliary power supply, and communications require both BESS and PCS to work as one.

Battery partnerships: REPT, CATL.

Where to buy: Greentech Renewables (CED) or Direct

ESS Specs Full spec sheets
AC and/or DC coupled?AC Coupled Only
Voltage range480 Volt Nominal (422.4V~528V AC)
Roundtrip Efficiency~93%
Max powerShort duration load — system can provide up to 1.2 times the nominal power (300kW). See product documentation for details.
Continuous power250kVA@45°C
Operating temp.-30 to 50°C (> 45°C derating)
Battery input voltage864~1168V
Is separate critical load panel needed?The system is designed for C&I customers with a 3-phase, 480-volt output. This is not intended as a residential product.
Is ESS listed to UL 9540?Yes
All system certificationsUL1741, UL1741SA Rule 21, IEEE1547:2018, UL1741 SB
Battery specs / info
Battery brand / OEMVaries
Battery typeLFP
CouplingAC Coupled Only
Capacity (module / cabinet)573 kWh
Power286 kW
Charge: continuous / peak≤0.5C
Discharge: continuous / peak≤0.5C
Max surge rateSystem passed surge immunity testing, and has surge voltage protection included.
Load start capability (LRA)~ 5-8 times of FLA
ESS / Inverters with closed loop comms  Yes
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?Available
All certificationsIEC62619, IEC63056, IEC62040, IEC62477, UN38.3, UL9540, UL9540A,
Warranty (years / cycles)5 Standard up to 20

Savant | Power Storage 50

Savant Power System 50

System components

  • Savant Power Inverter: A 12.5kW split-phase hybrid PCS inverter with a 100A MID. It includes two built-in MPPTs for DC-coupled solar, as well as support for AC-coupled solar and automatic generators. Can be installed in parallel offering up to an 800A MID configuration with 100kVA of discharge power.
  • Savant Power Storage 50 Battery: A 50 kWh LiFePO4 storage system. Each Savant Power Storage 50 Battery can support up to two Savant Power Inverters. Up to eight Power Storage 50s can be installed for 400 kWh of combined storage.

Key features: The Savant Power Storage 50 is a high-performance battery and inverter solution that’s powerful yet simple to install. Scalable to handle electrical services up to 800A across multiple units, the Power Storage 50 delivers clean reliable energy to every circuit in the home. Combine with Savant Load Management to provide automatic load shedding capabilities on grid loss or at various state of charge (SoC) levels. With long battery life and 10-year warranty, you can rest assured that you’ll always have power where you need it when you need it.

Operating modes: Self Sufficiency/ Meter Zero Mode/ Excess Solar to Grid/ Storm Watch/ Off-Grid

Where can it be installed: Indoor

Battery integrated or sourced separately: Battery integrated

Battery partnerships: None – Only Savant Batteries Supported

Where to buy: ABC Supply Co. Inc., ECO Direct, Greentech Renewables, Platt Electric Supply, Soligent, Stellavolta, Supplied Energy, Ultimate Integration, Wave Electronics, Zonna Energy

ESS Specs PS50 Full spec sheet
AC and/or DC coupled?DC Coupled
Voltage range120/240 V
Roundtrip Efficiency93.8%
Max power (Single Inverter/ Dual Inverter)12.5kW/ 25kW
Continuous power (Single Inverter/ Dual Inverter)12.5kW/ 25kW
Operating temp.32°F – 113°F
Battery input voltage512 V
Is a separate critical load panel needed?Not required when used with Savant Load Management for real time load shedding
Is ESS listed to UL 9540?Yes
Energy / load controls
Microgrid interconnect device (MID)?
(Single Inverter/ Dual Inverter)
100A/ 200A
No. of smart circuitsUp to 512
EV charger input / amp ratingUp to 48A EV Charger
Generator input?Yes
Listed as a PCS?Yes
AC Coupled Solar?Yes
Hybrid Inverter
Rated output power12.5kW
Max PV input (oversize %)17 kWh (136%)
MPPTs / strings per MPPT2 MPPTs/ 2 Strings per MPPT
Efficiency: Max / CEC93.8%
Battery input voltage range480V – 584V
Output overcurrent protectionExternal
Max. charge current / discharge current (AC)52A/ 52A

All system certificationsFCC Part 15 Class B, IEEE-1547:2018, IEEE-1547:2020.1, CA Rule 21, UL 1741 SA, UL 1741 SB, HECO, UL 1741, UL 1741 PCS, UL9540, UL9540A, UL 1973, UL 1642, UL1699B, UL 60730, C22.2 No. 107.1, 330
Battery specs / info
Battery brand / OEMGotion
Battery typeLiFePO4 – Prismatic Cell
CouplingDC Coupled
Capacity (module / cabinet)Cabinet – with 10 modules (requires all 10 modules installed)
Power:25 kW
Charge: continuous / peak50 A
Discharge: continuous / peak60 A
Max surge rate97.5 A
Load start capability (LRA)49.9 kVA
ESS / Inverters with closed loop comms  Yes
Have you completed 9540A testing?  Yes
Is it LISTED to UL 9540?Yes – Intertek Link
All certificationsUL 9540/ UL 9540A
Warranty (years / cycles)10 Year/ 3650 Cycles

Weidmuller | Battery Connectors

Weidmuller battery connectors

Battery connectors are critical components that facilitate the transfer of electrical energy between the battery cells and the application. They must be designed to handle high currents, minimize power losses, and provide secure and reliable connections. Battery connectors come in various shapes and sizes, catering to different types of batteries and applications.

Key features: Engineered to handle high currents, allowing for efficient energy transfer and reduced power losses. Designed to withstand harsh environmental conditions. User-friendly with mechanisms that prevent accidental disconnections. Contact made of copper alloy finished with silver and approved according to UL 4128 to warrant the best electrical contact with more than 100 operations of mechanical connection and disconnection (without load). On the wiring side, options for conductor cross-sections from 10mm² to 95mm².  On the mating part, a busbar where the conductor can be easily connected on the device by means of a cable lug. Color coded connectors (orange = positive; black = negative) on both the connector and the mated busbar connection. Connectors are key coded on both sides to alleviate the possibility of user error. A locking mechanism to fasten the plug and the socket.


Tags: , , , , , , , , , , , , , , , , , , , , ,

Comments are closed here.
