Resilience by design | Engineering utility-scale solar projects for a 40-year weather reality
By Melissa Romer, Nextpower | As utility-scale assets move toward 40-year design lives, developers need a site-specific process that connects hazard data, tracker dynamics, modules, foundations, controls and cost before design assumptions harden into change orders.

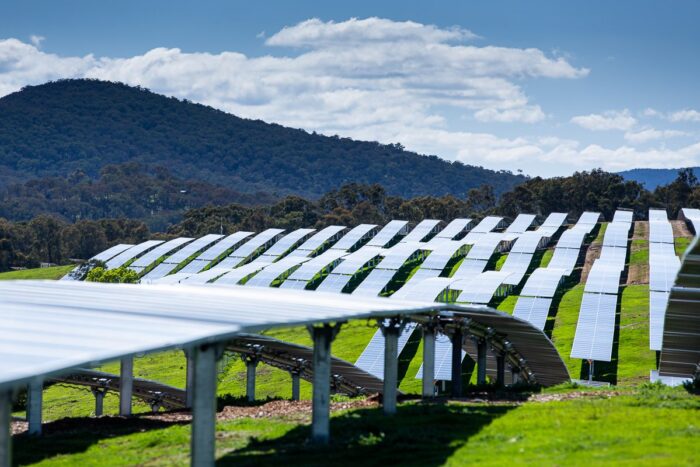

Solar is becoming critical energy infrastructure, and expectations for long-term performance are rising with deployments.
Ten years ago, we were typically designing for a 25-year operating life. Today, 40 years of operation has become the norm. Those additional years bring more exposure to severe weather at a time when extreme events are affecting a wider range of regions. Tornadoes, hurricanes, floods, and hailstorms are occurring more regularly. We are also seeing more projects that require Risk Category II instead of Risk Category I, a standard that brings more demanding design criteria. Meanwhile, the weather maps used today may no longer reflect conditions that are expected two or three decades into the asset’s operating life.
Increasing project scale adds another layer of complexity. The engineering challenge is to improve resilience without carrying expensive conservatism across every acre of the site. At the same time, project teams are still trying to optimize production, constructability, and cost, while meeting aggressive timelines.
That is why the predesign phase is so critical. This article examines the key inputs, decision points, engineering practices, and modern system and software innovations needed to bake lifecycle resilience into a solar project in advance of detailed design, and long before the first components ship.
Build the hazard profile before the layout
Resilient design begins with a clear, shared understanding of the site. A useful hazard profile goes beyond listing wind speeds, flood elevations, or soil conditions. It shows how each condition affects an engineering decision.
A practical process includes four steps:
1. Lock the governing assumptions. Confirm service life, code and risk category, wind speed, snow load, module model and allowable pressures, maximum pile reveal, tracker operating range and preliminary stow assumptions before running structural calculations. These inputs should be agreed upon across the project team. When one discipline works from a different assumption, the conflict often surfaces late, after the design has already advanced.
2. Map conditions across the site. Large solar sites are rarely uniform. Wind exposure, flood depth, drainage patterns, corrosion risk, terrain, and subsurface conditions can vary considerably within a single project boundary.
The hazard register should combine applicable code maps with long-term records and, where relevant, forward-looking projections for wind, hail, snow and ice, flooding, hydrology, scour, temperature, frost, corrosion, terrain, and soil variability. Those conditions should be mapped across the footprint rather than reduced to one conservative value for the entire site.
3. Connect each hazard to a design response. A thorough hazard profile helps drive appropriate technology selection and shape the project design.
Corrosion affects material selection and coating requirements. Frost and refusal risk influence foundation type and installation methods. Flooding can change tracker elevation, pile reveal, drainage, and maintenance access. Wind and hail affect, module attachment, stow angle and controls, communications, and backup power.
Making those relationships explicit helps the team see which assumptions have the greatest effect on cost, schedule, and long-term performance.
4. Use targeted studies to reduce uncertainty. A specialty wind or snow study, additional borings, updated hydrology, or a corrosion assessment may cost far less than carrying a broad conservative assumption through the entire project.
Teams can compare multiple foundation types including W-beam piles, helical piles, A-frame foundations, and ground screws; model tracker elevation in flood-prone areas; and test row spacing, terrain-following geometry, and stow strategies against site-specific conditions. The objective is to spend engineering effort where better information can materially improve the design, cost or risk.
Go beyond the site design wind speed
A site design wind speed is an essential input, but it cannot describe everything that happens to an array when air moves through site.
Static analysis checks whether the structure can resist a defined load. Aeroelastic analysis examines how the tracker moves as airflow interacts with it, and whether that motion can turn into instability. Vortex shedding, galloping, flutter, and other torsional effects can amplify tracker motion and transfer demand through the row into modules and attachments.
Importantly, dynamic instability can occur below the site design wind speed when airflow interacts with the system’s natural frequency, stiffness, and damping. Robust validation therefore draws on static analysis, aeroelastic wind-tunnel testing, and full-scale field testing to provide a more complete assessment.
A site-specific wind study can refine map-level assumptions, identify directional and terrain effects, and support a design that reflects actual site conditions. That added precision allows for the use of stronger components specifically where needed, while other sections of the site may use a more efficient design while maintaining code compliance and dynamic stability.
Treat trackers, modules, foundations and controls as one system
Risk is found at the interfaces: where the module attaches to the tracker, where the tracker transfers load into the foundation, or where a control command triggers actual physical movement before a storm arrives. That means system resilience is fortified at the interfaces.
Module pressure mapping and attachment approvals must be evaluated alongside tracker stability. Modern modules are larger, and many designs use thinner dual-glass laminates with reduced frame profiles. In some configurations, the module becomes a structurally limiting component. A tracker row can remain standing while the project still experiences significant losses from excessive module deflection or glass stress.
CLICK HERE to continue reading this story in the digital version of the Q3 2026 issue of Solar Builder magazine.
Melissa Romer is director of project engineering at Nextpower. She works with developers, EPCs, independent engineers, and asset owners to evaluate tracker, foundation, terrain, controls, and weather-response decisions toimprove constructability, reduce redesign risk, and support long-term asset performance.
